| Image | Model Code | Power | Overall Dimension (mm) | Cutout Dimension (mm) | Standard Light Source |
Color Temperature | Beam Angle | Description | Inner Ring Color |
|---|---|---|---|---|---|---|---|---|---|
 |

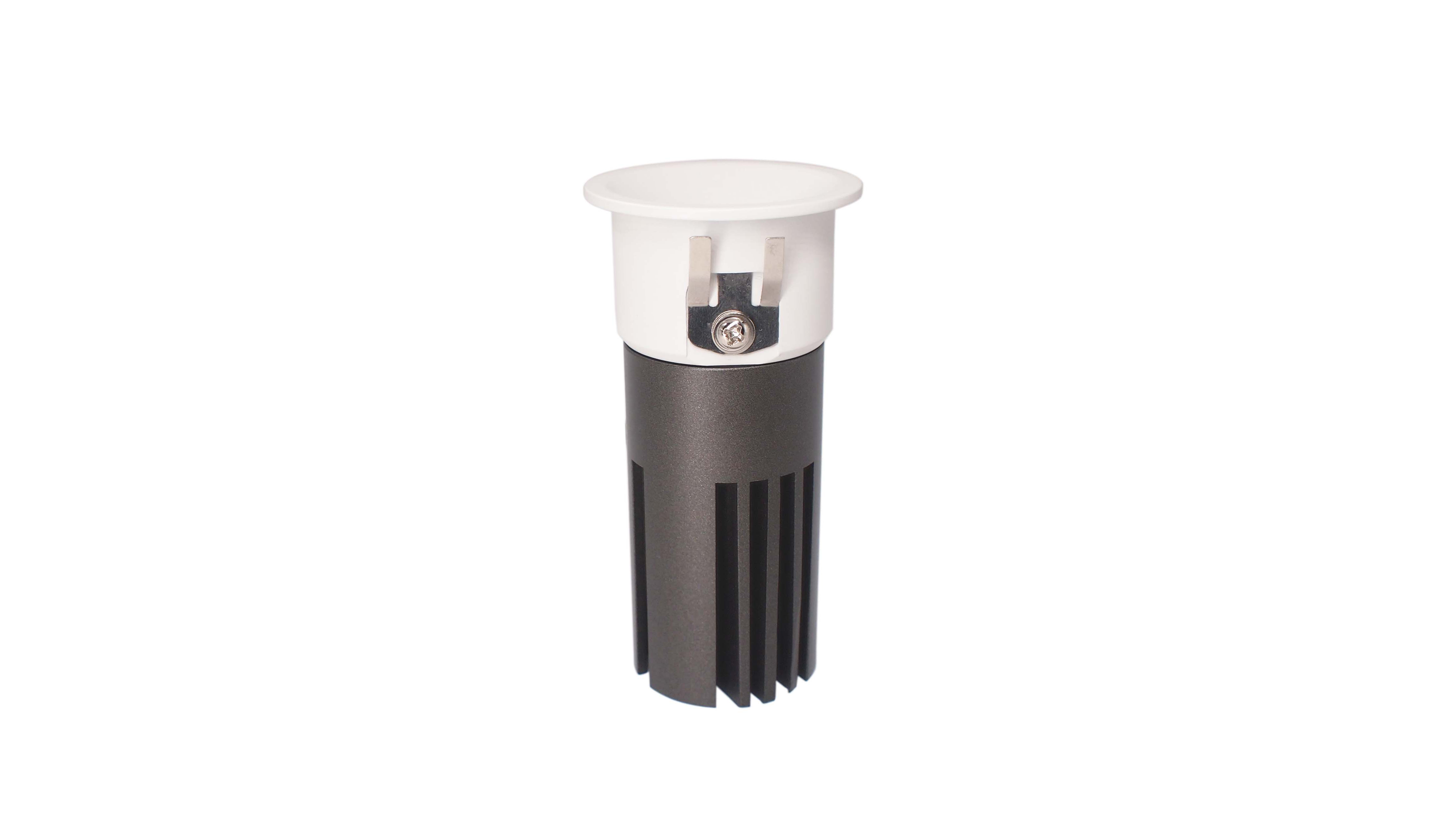

CS-Q8245-07S | 7W | Φ47*93 | Φ40 | Bridgelux | 2700K / 3000K 3500K / 4000K 5000K / 6000K |
24° / 36° | Fixed Head Lens |
Matte White |
 |

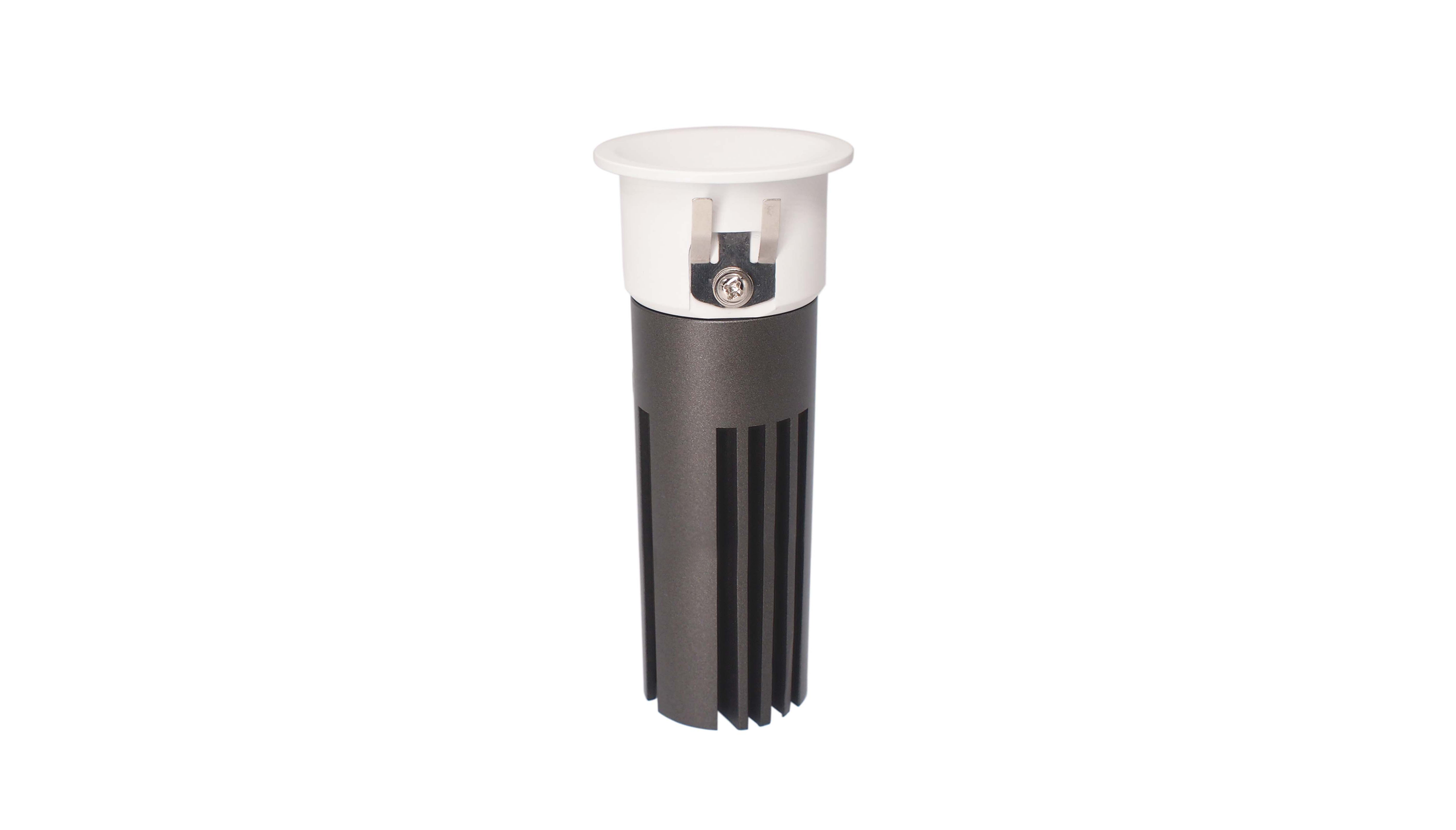

CS-Q8245-10S | 10W | Φ47*123 | ||||||
 |

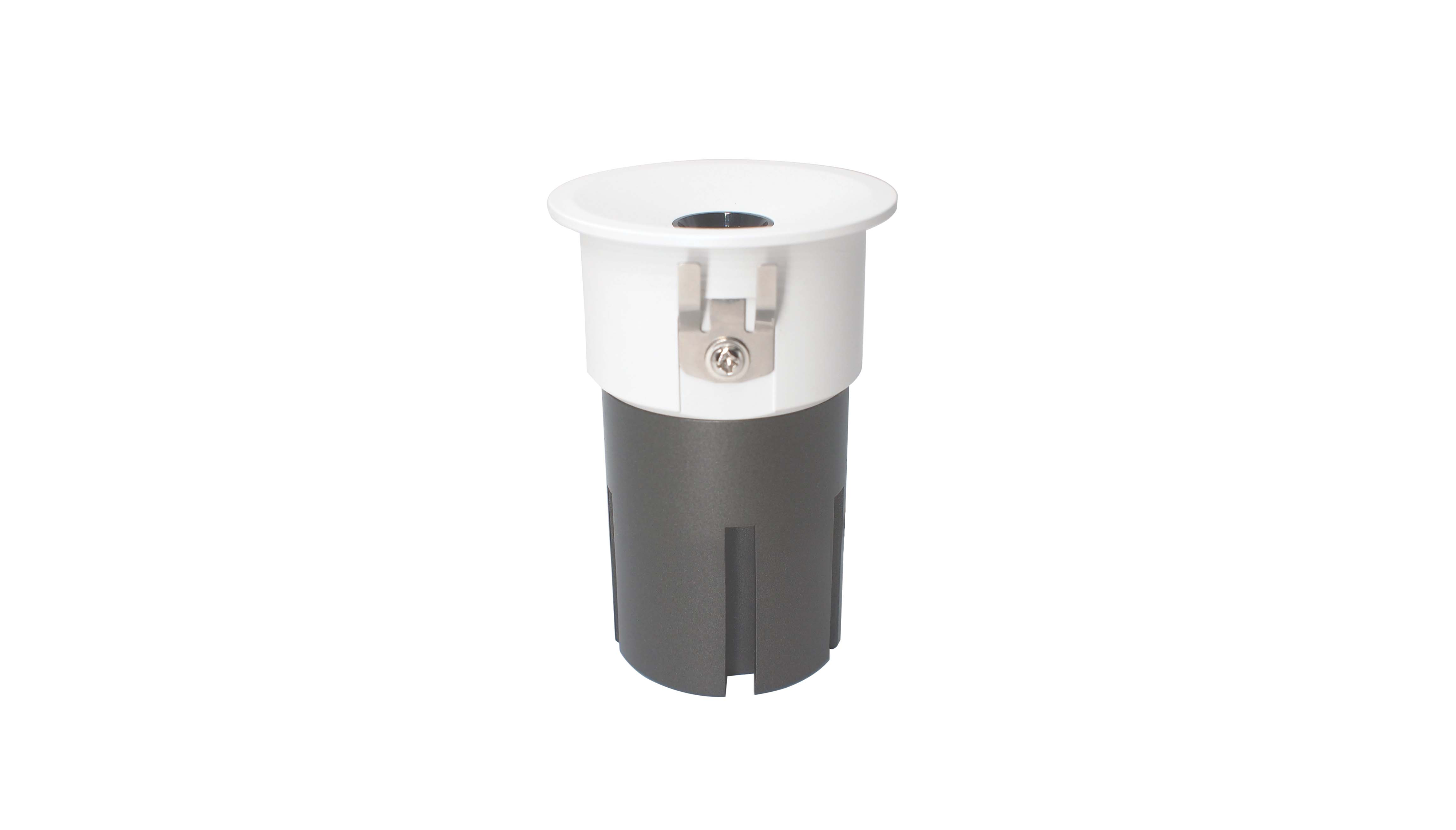

CS-Q8255-07S | 7W | Φ58*80 | Φ55 | Bridgelux | 2700K / 3000K 3500K / 4000K 5000K / 6000K |
24° / 36° | Fixed Head Lens |
Matte White |
 |

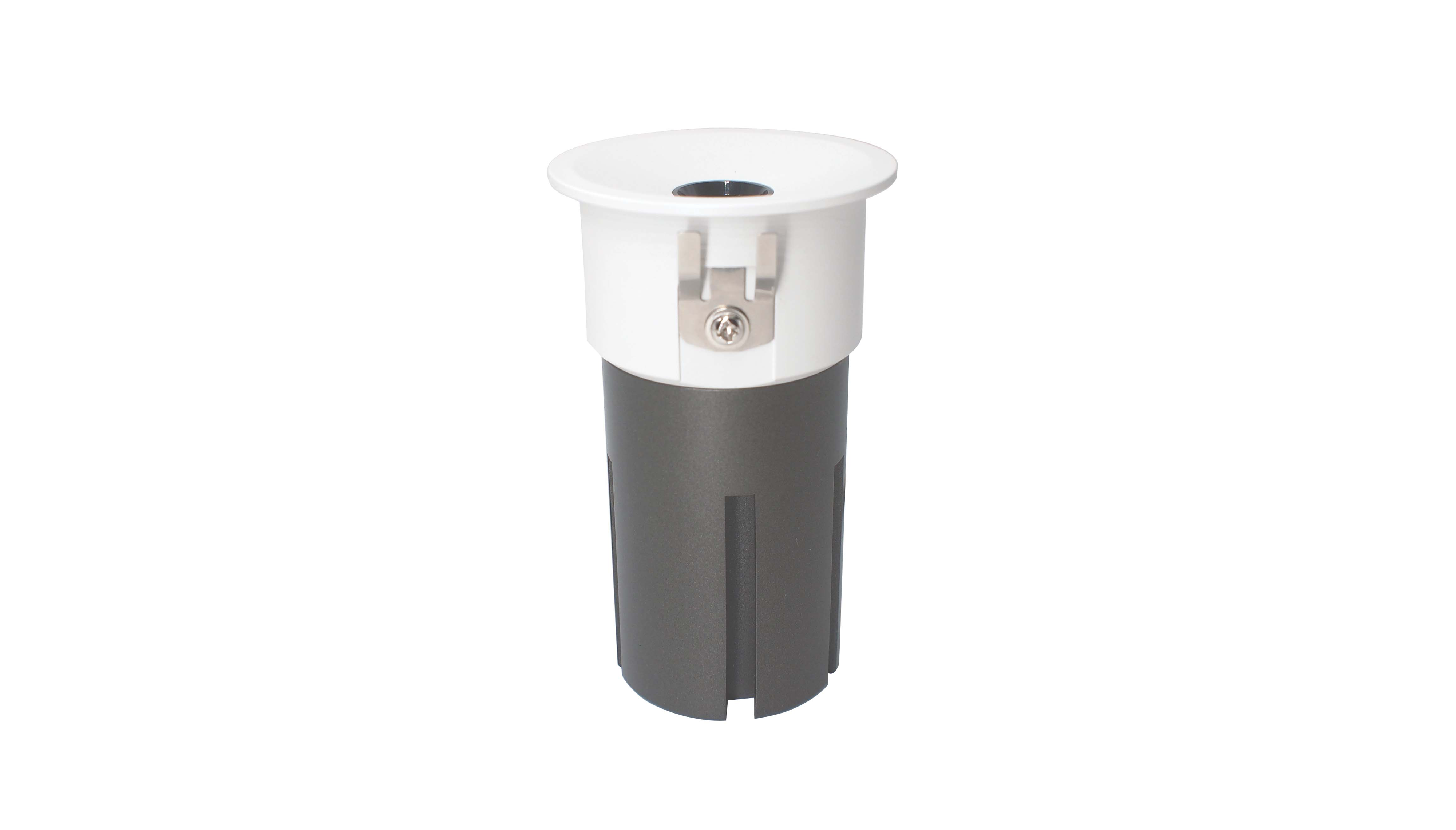

CS-Q8255-10S | 10W | Φ58*99 | ||||||
|
CS-Q8265-12S | 12W | Φ83*86 | Φ75 | Bridgelux | 2700K / 3000K 3500K / 4000K 5000K / 6000K |
24° / 36° | Fixed Head Lens |
Matte White |
| CS-Q8265-15S | 15W | Φ83*117 |
