| Image | Model Code | Power | Overall Dimension (mm) | Cutout Dimension (mm) | Standard Light Source |

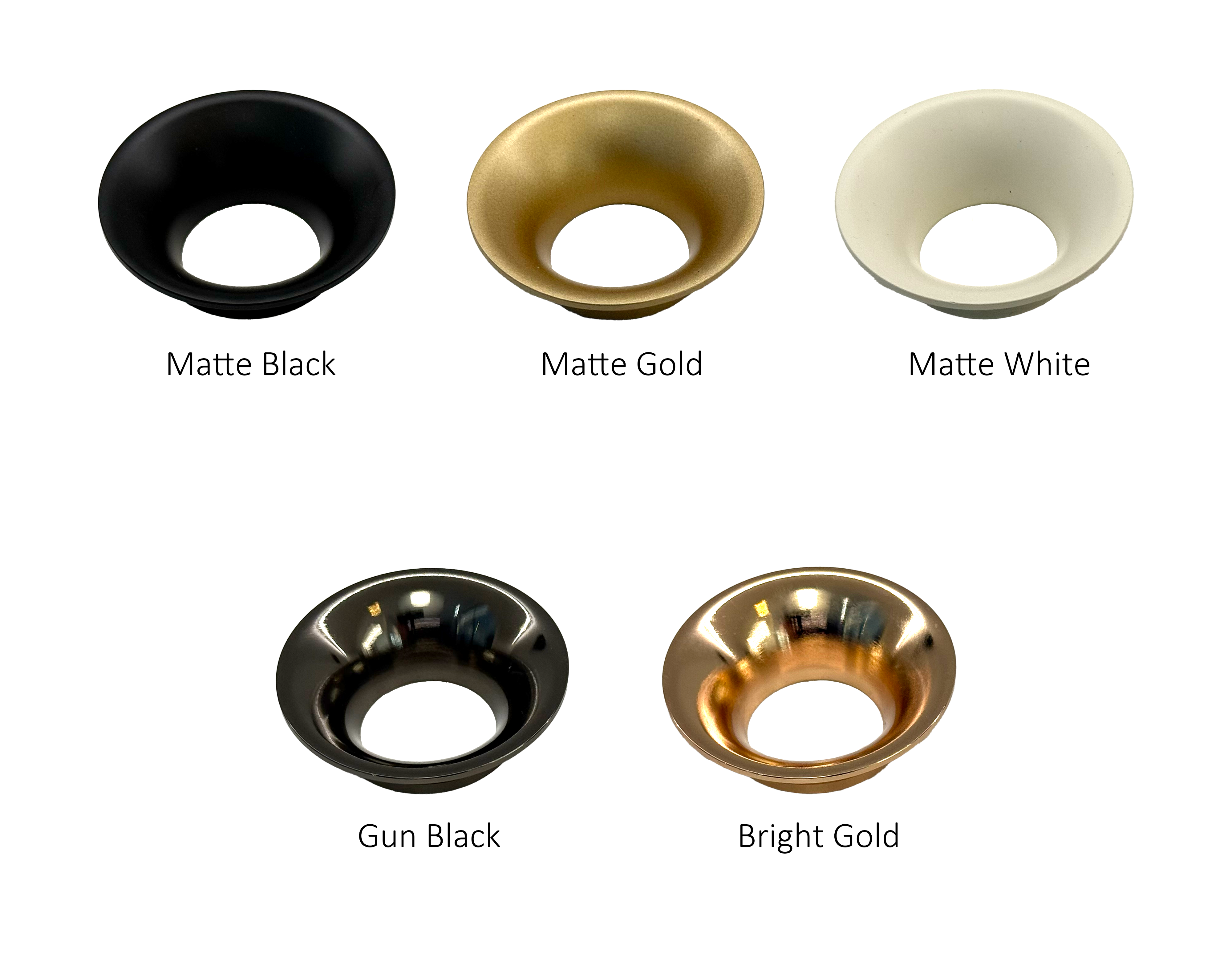

Color Temperature | Beam Angle | Description | Outer Ring Color |
|---|---|---|---|---|---|---|---|---|---|
 |

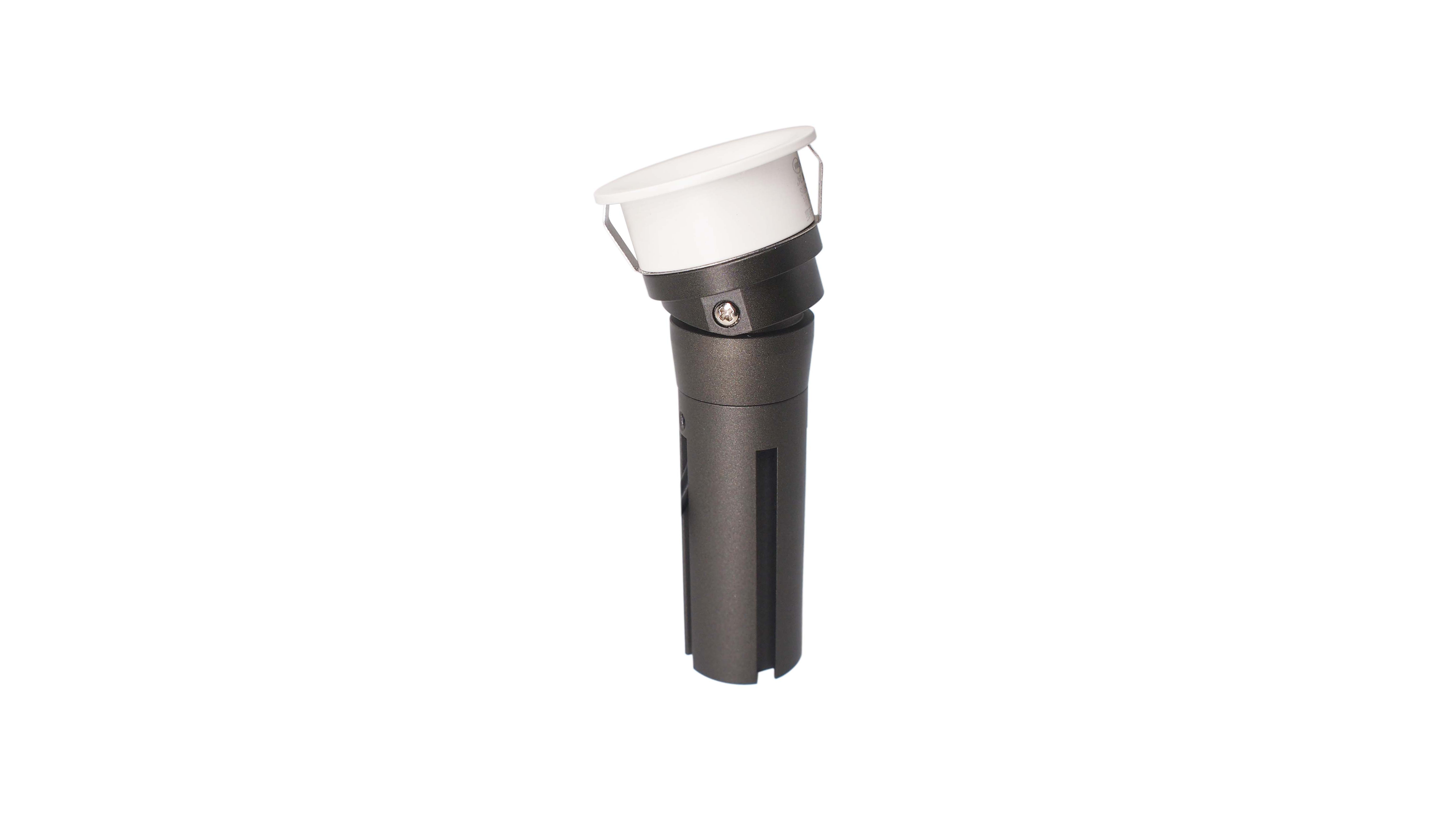

CS-Q83-35-07S | 7W | Φ39*100 | Φ35 | Luminus | 2700K / 3000K 3500K / 4000K |
10° / 15° / 30° | Adjustable Head Lens |
 |
 |

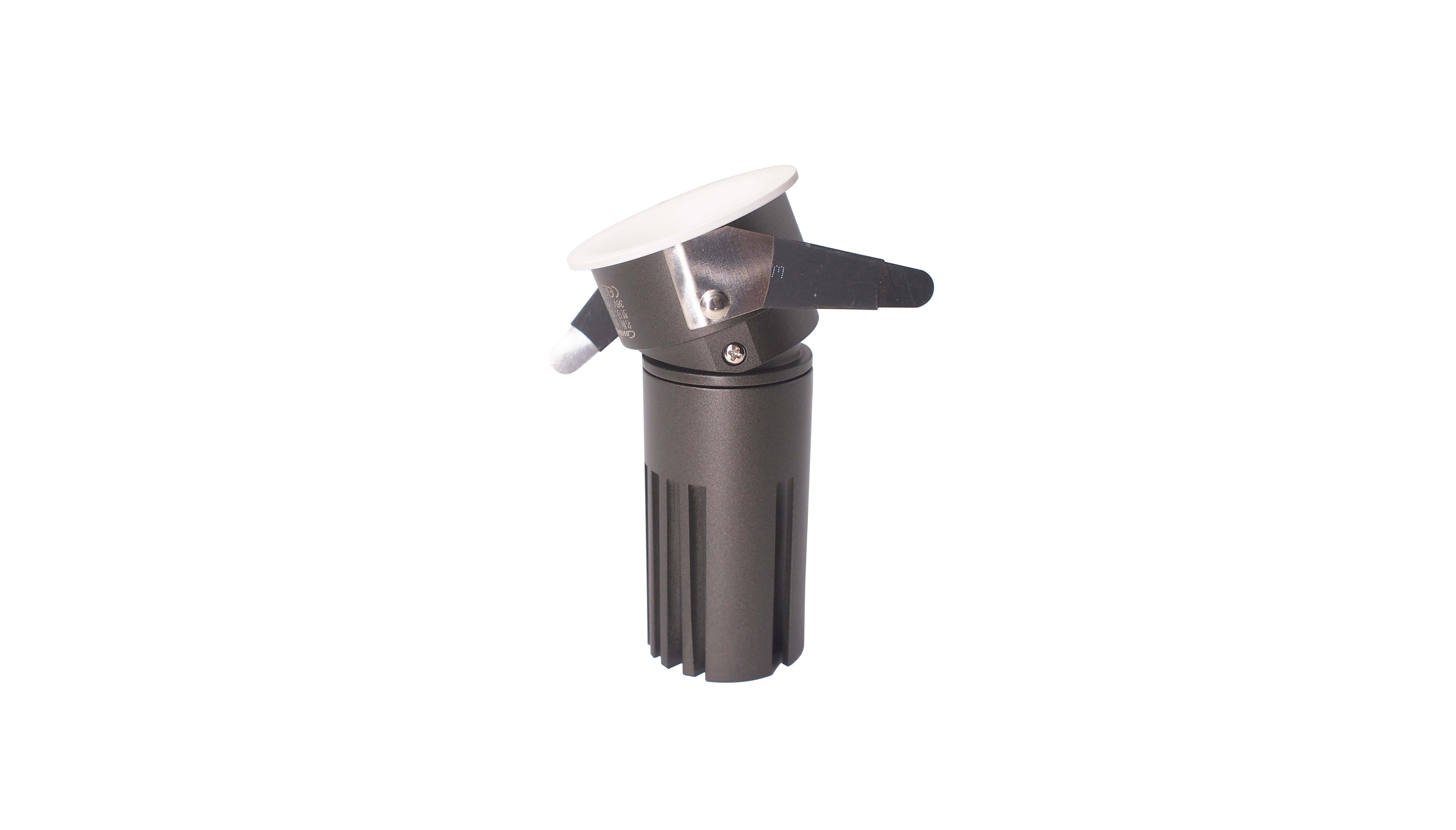

CS-Q83-45-07S | 8W | Φ49*99 | Φ45 | Bridgelux | 2700K / 3000K 3500K / 4000K 5000K / 6000K |
15° / 24° / 36° | Adjustable Head Lens |
|
 |

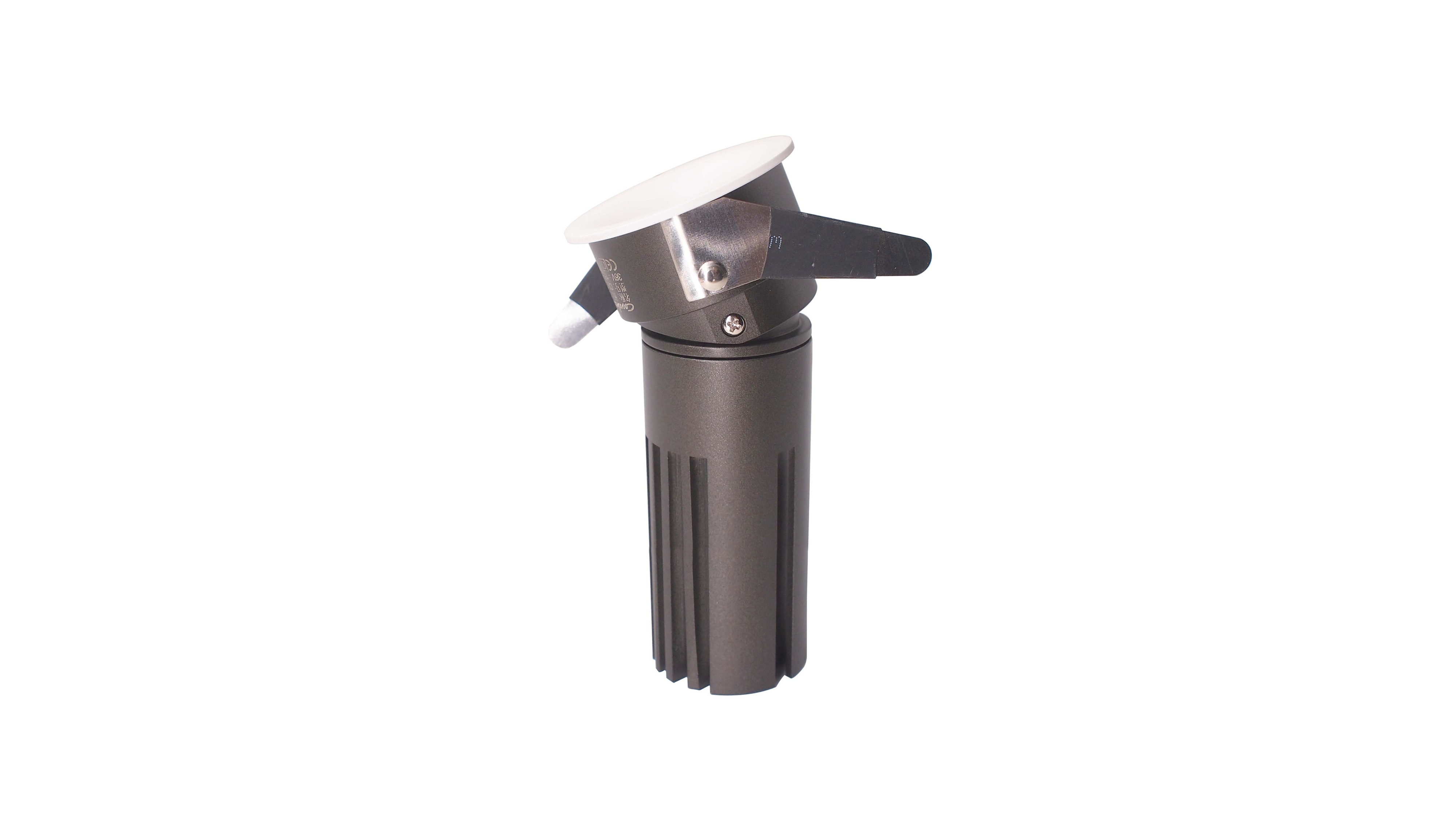

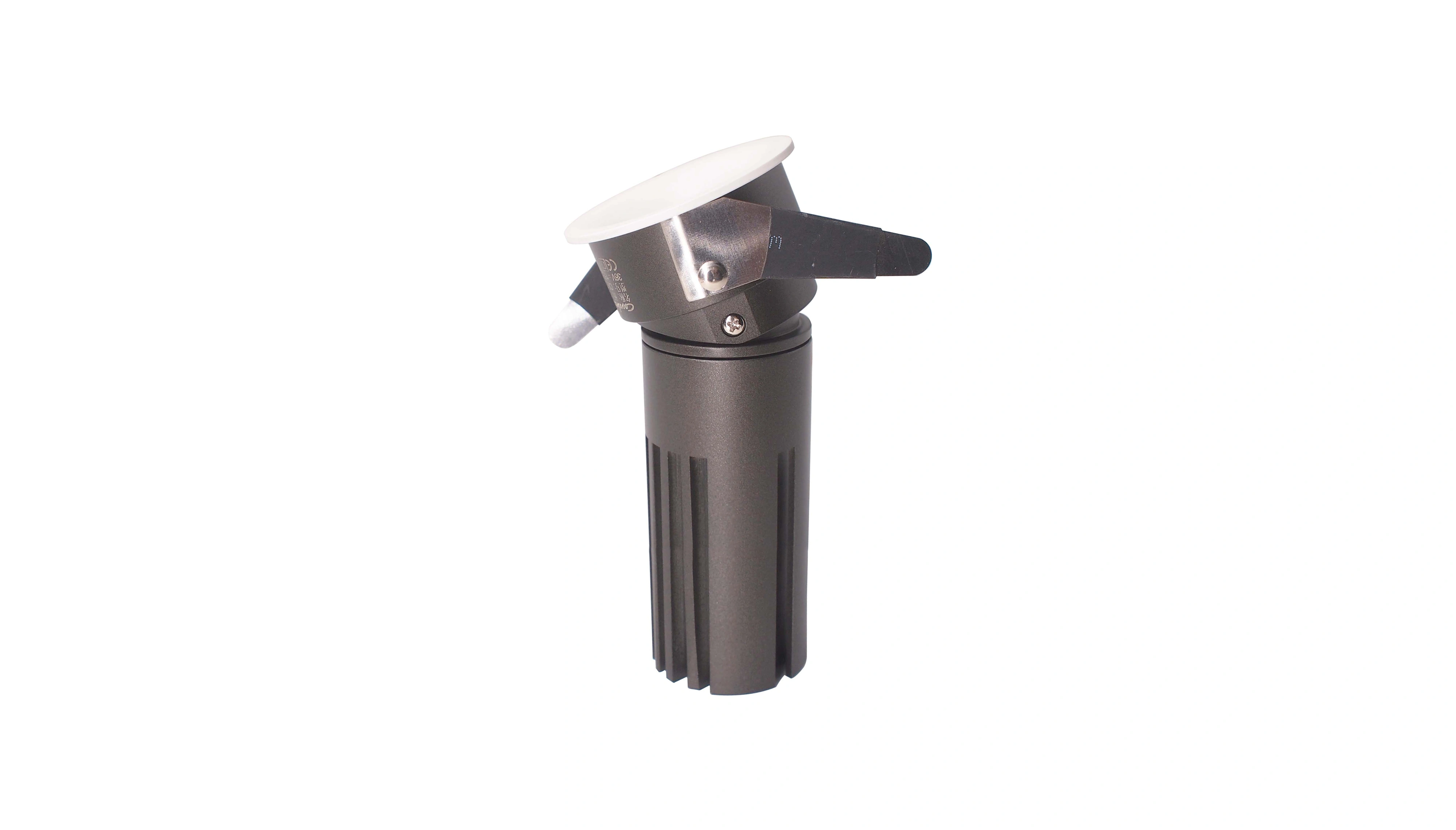

CS-Q83-45-10S | 10W | Φ49*129 | ||||||
 |

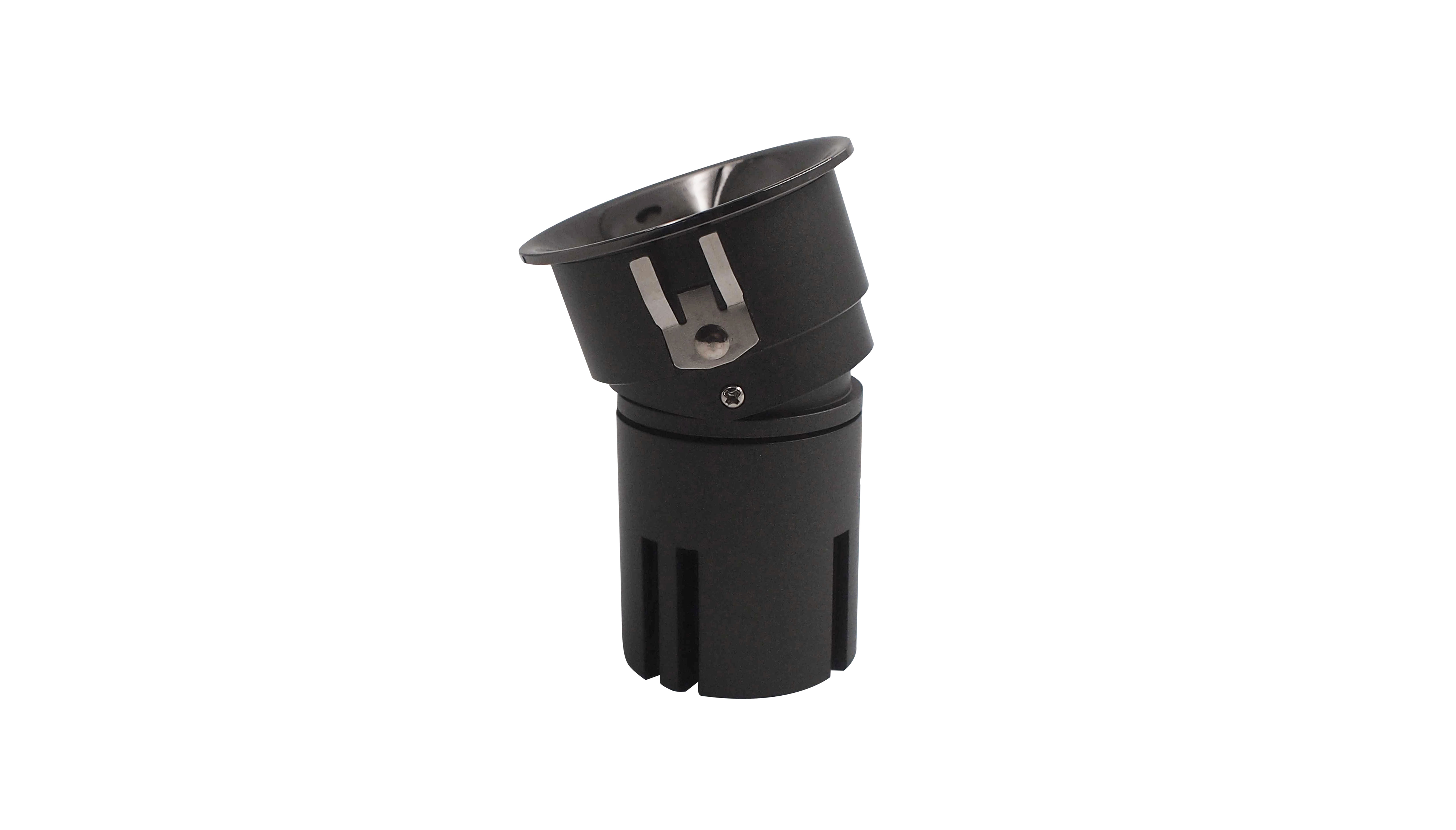

CS-Q83-55-07S | 7W | Φ60*85 | Φ55 | Bridgelux | 2700K / 3000K 3500K / 4000K 5000K / 6000K |
15° / 24° 36° / 50° |
Adjustable Head Lens |
|
 |

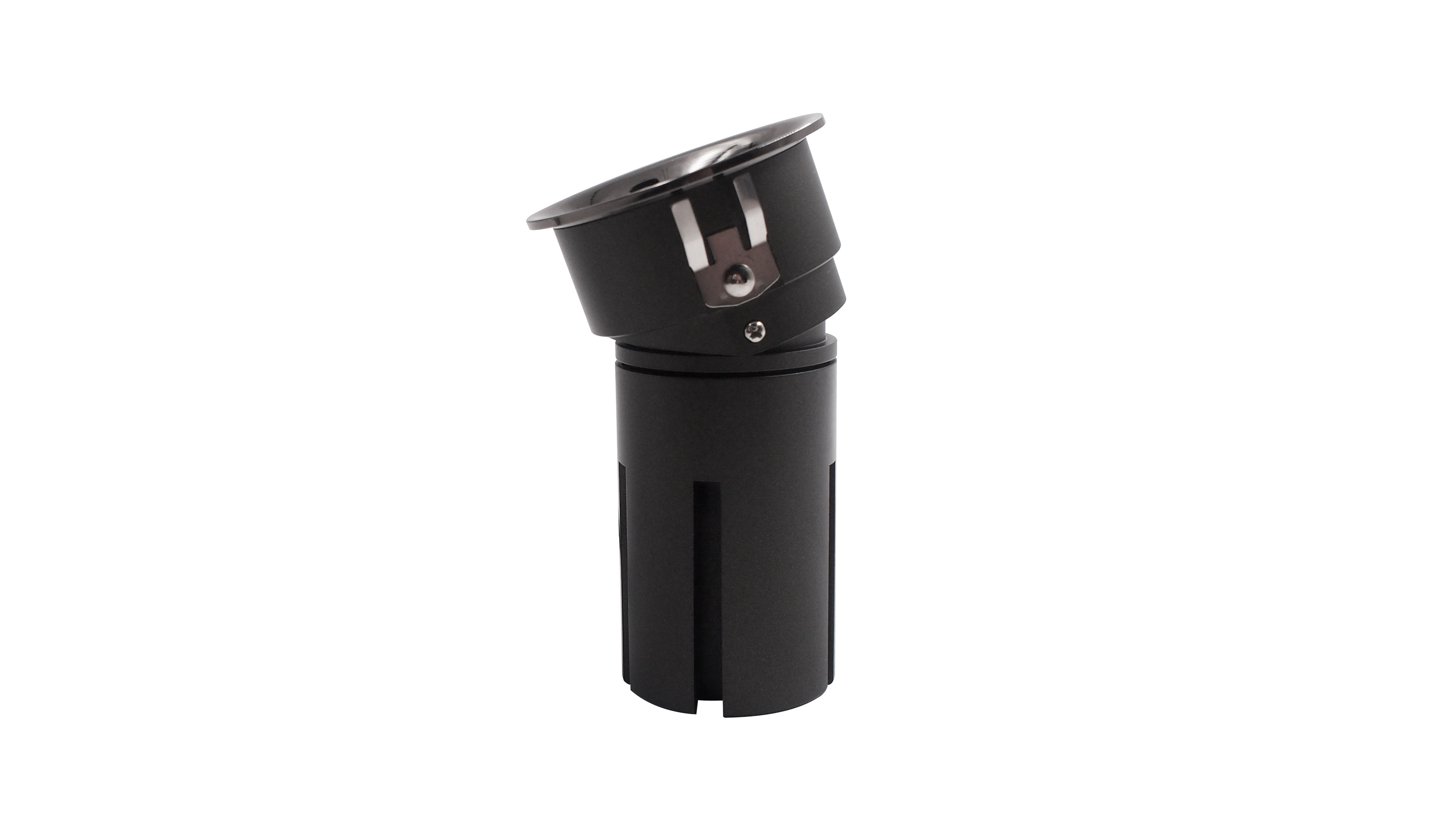

CS-Q83-55-10S | 11W | Φ60*104 | ||||||
 |

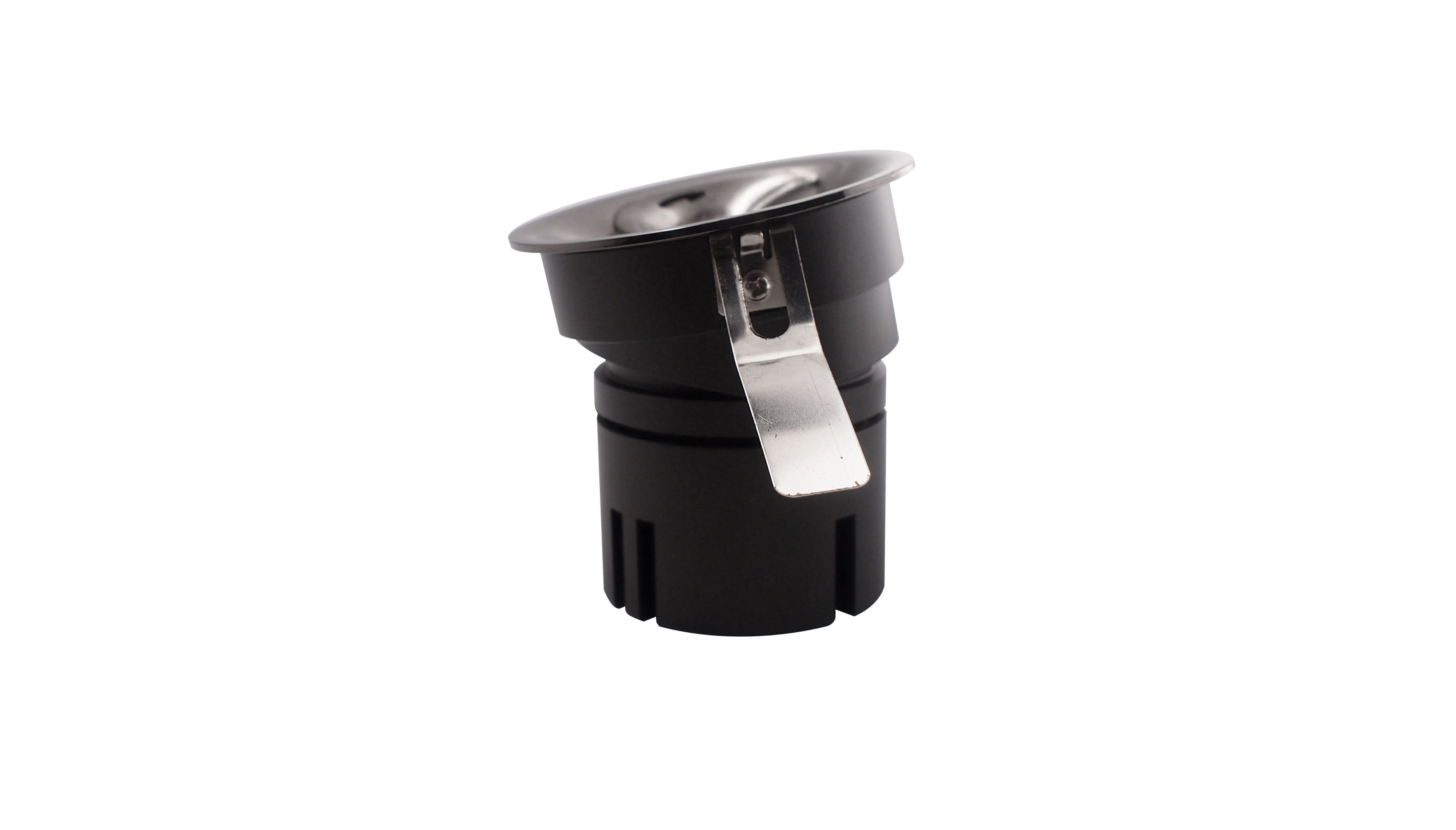

CS-Q83-75-08S | 8W | Φ83*83 | Φ75 | Bridgelux | 2700K / 3000K 3500K / 4000K 5000K / 6000K |
15° / 24° 36° / 50° |
Adjustable Head Lens |
|
|
CS-Q83-75-12S | 12W | Φ83*83 | ||||||
 |

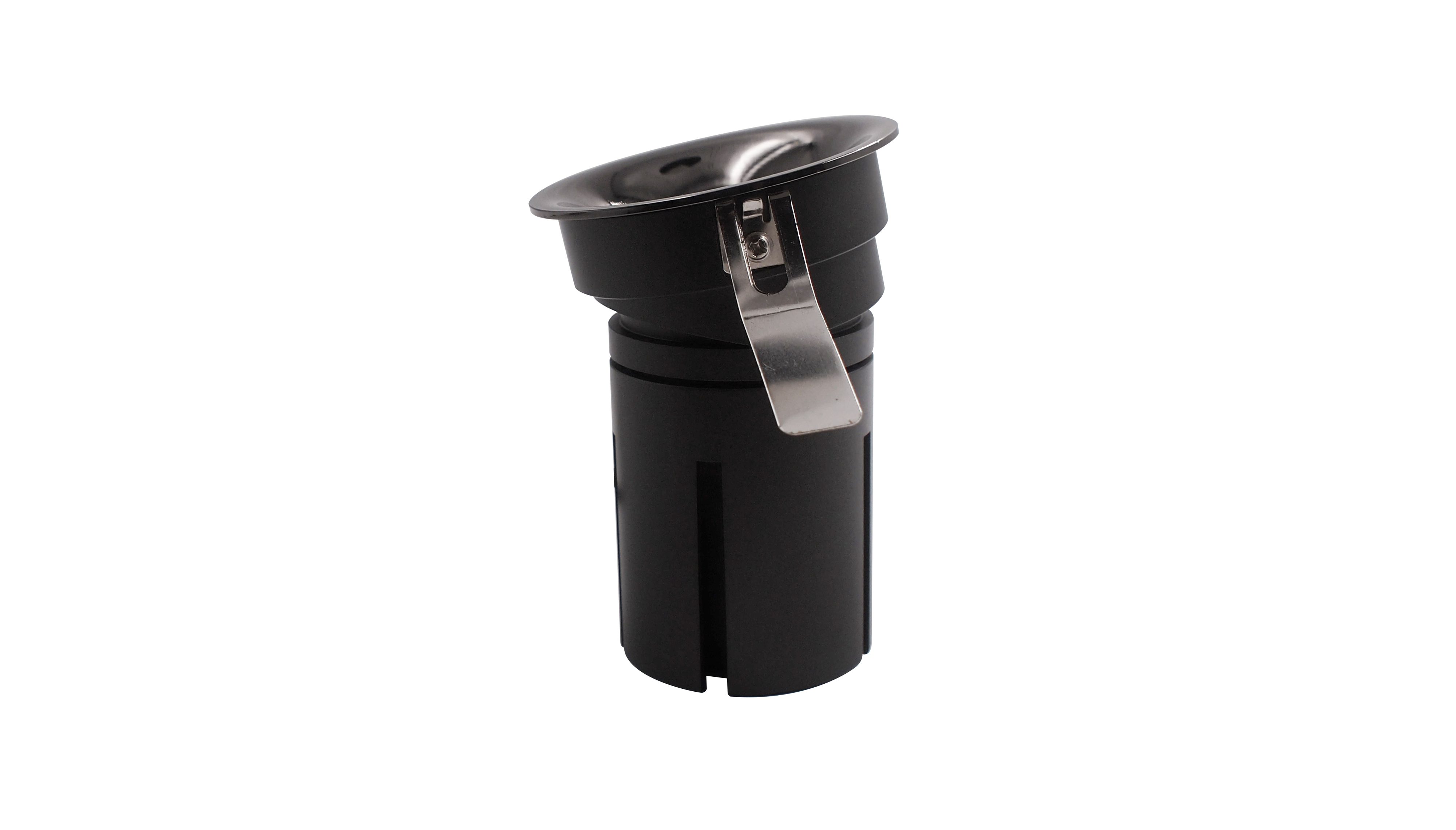

CS-Q83-75-15S | 15W | Φ83*116 | ||||||
|
CS-Q83-75-20S | 20W | Φ83*116 | ||||||
 |

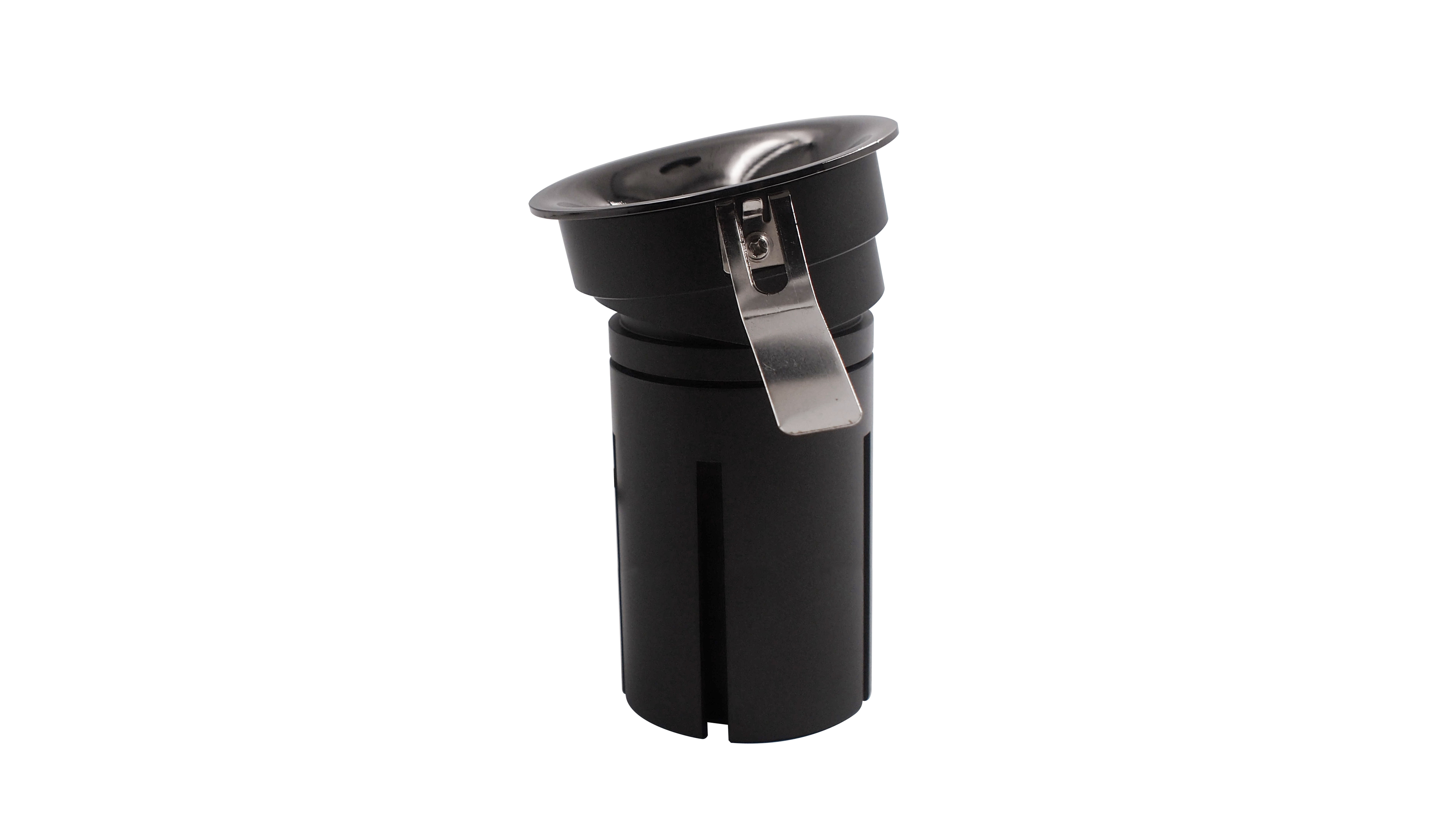

CS-Q83-75-24S | 24W | Φ83*128 | ||||||
 |

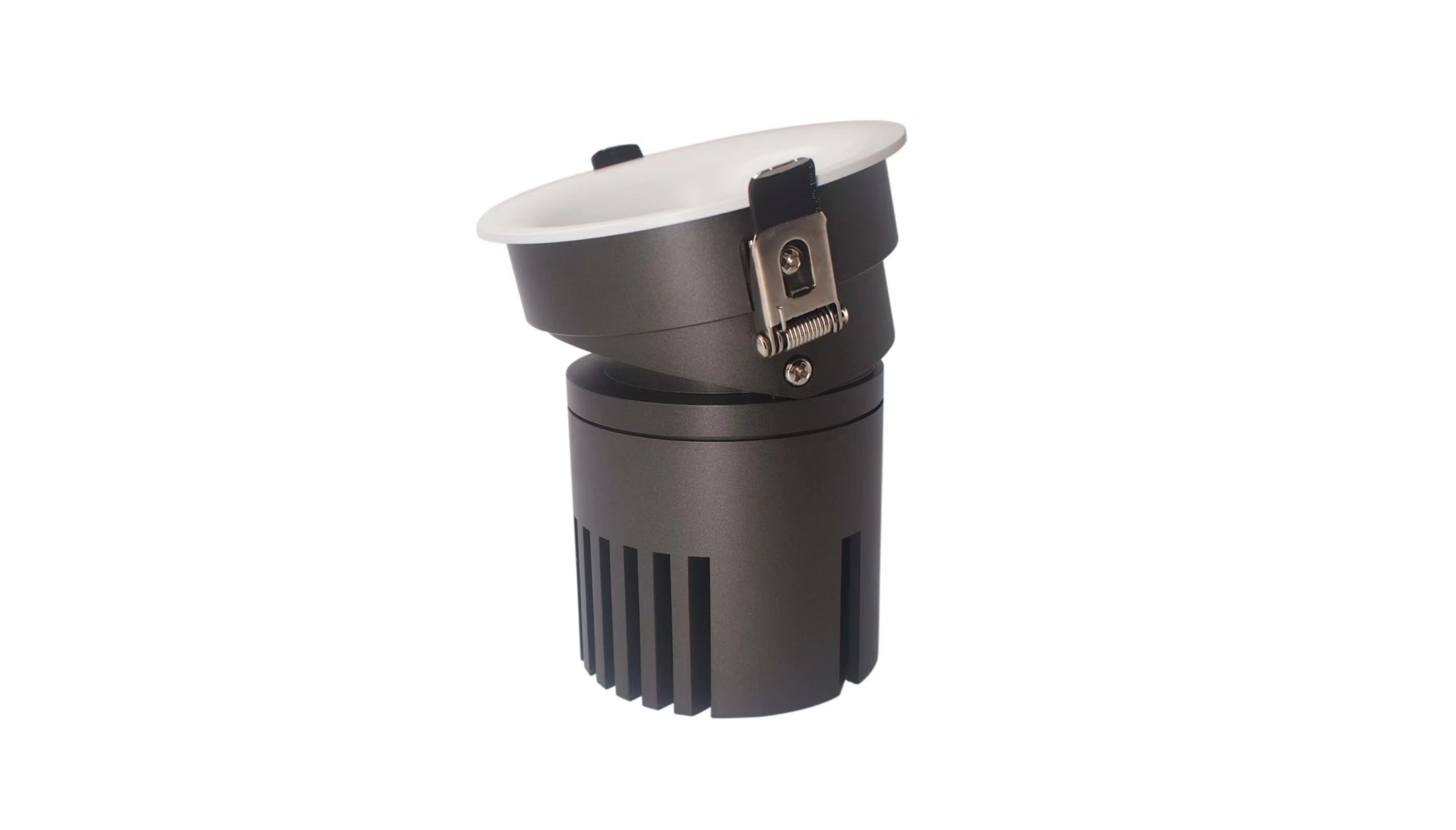

CS-Q83-95-30S | 30W | Φ105*128 | Φ95 | Bridgelux | 2700K / 3000K 3500K / 4000K 5000K / 6000K |
15° / 24° 36° / 50° |
Adjustable Head Lens |
|
|
CS-Q83-95-35S | 35W | Φ105*128 | ||||||
|
CS-Q83-95-40S | 40W | Φ105*128 |
