| Image | Model Code | Power | Overall Dimension (mm) | Cutout Dimension (mm) | Standard Light Source |
Color Temperature | Beam Angle | Description | Inner Ring Color |
|---|---|---|---|---|---|---|---|---|---|
 |

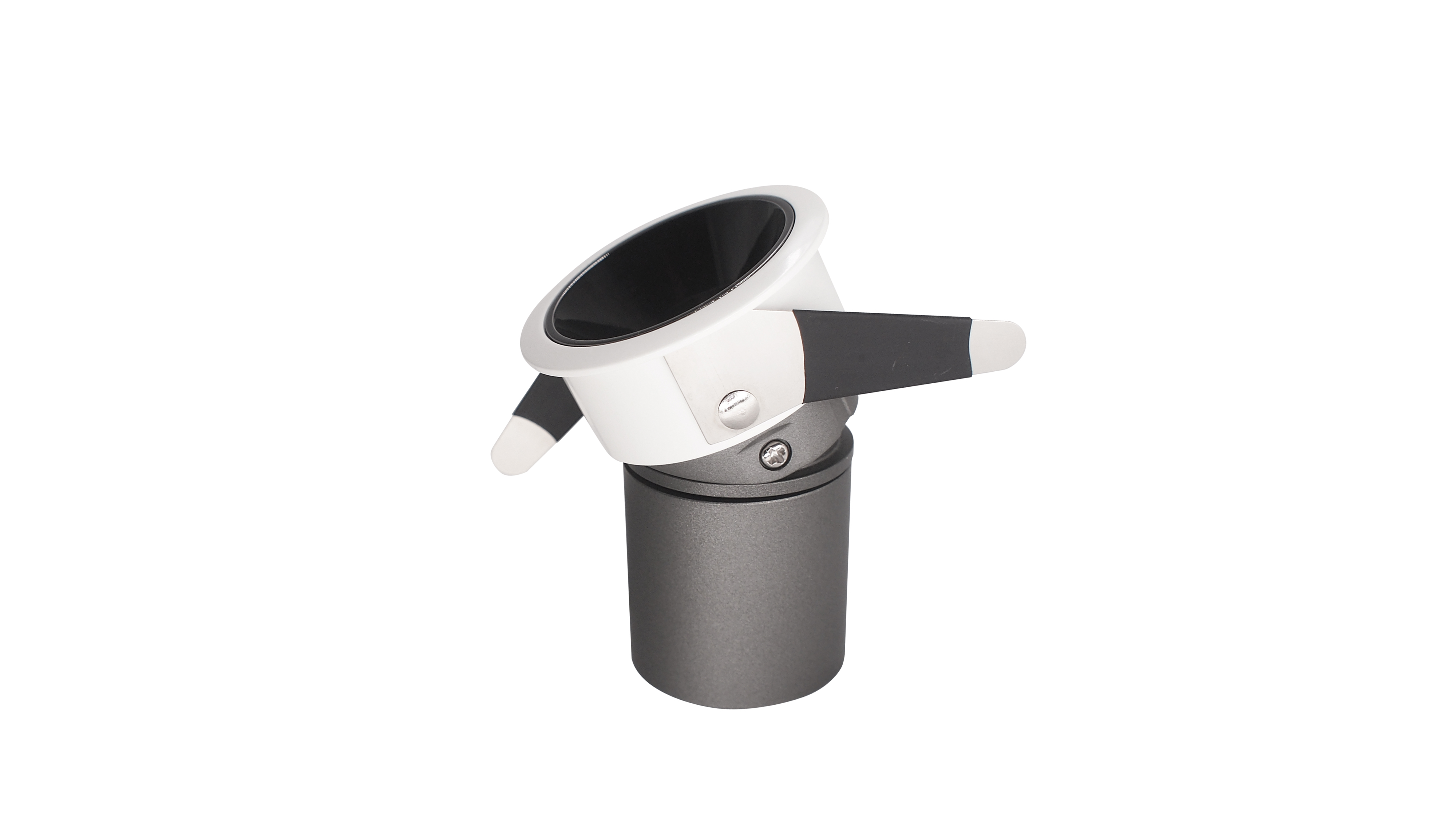

CS-Q8905-05S | 5W | Φ49*70 | Φ45 | Bridgelux | 2700K / 3000K 3500K / 4000K |
15° / 24° / 36° | Adjustable Head Lens |
Gun Black |
 |

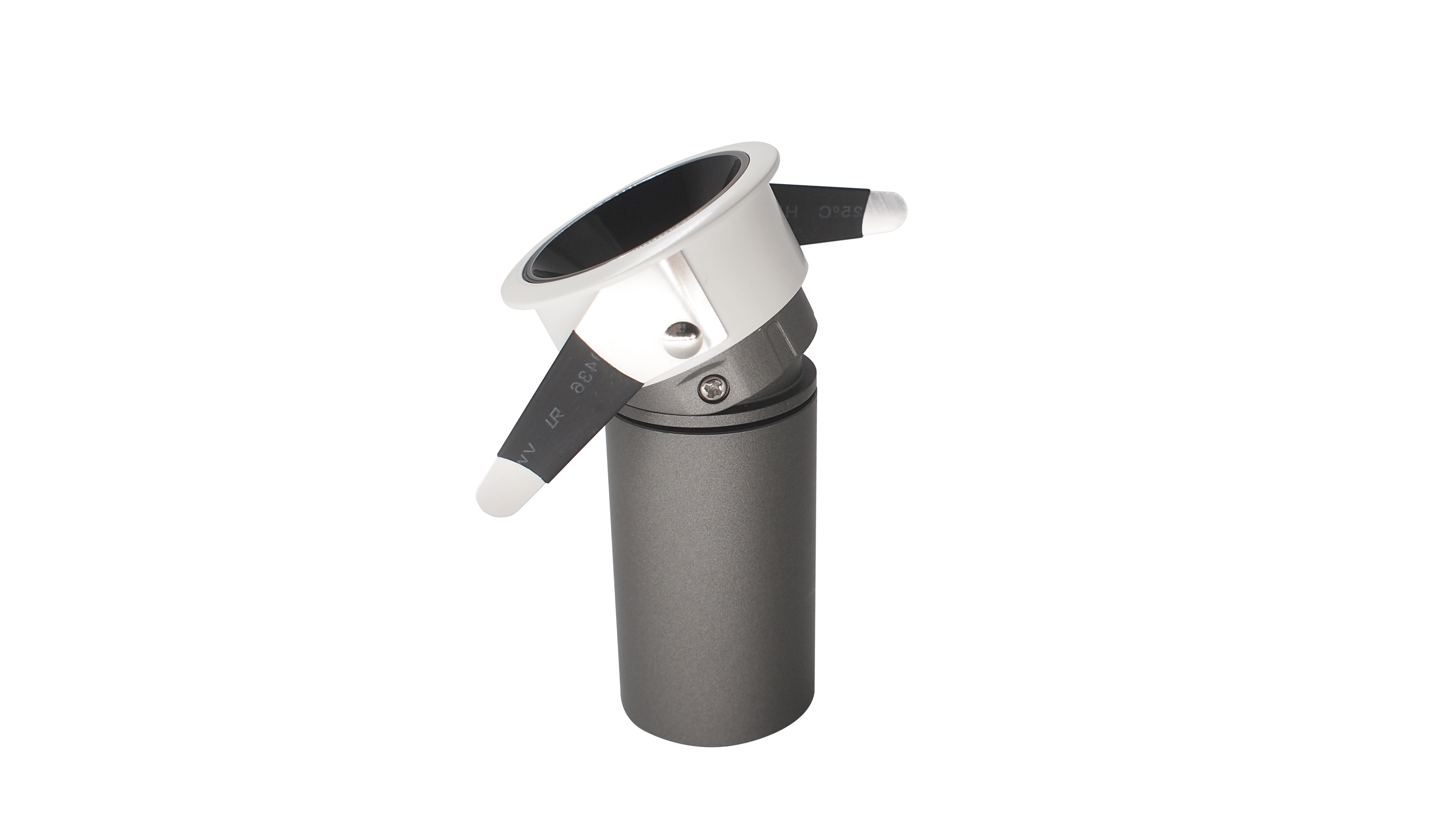

CS-Q8905-07S | 7W | Φ49*95 | ||||||
 |

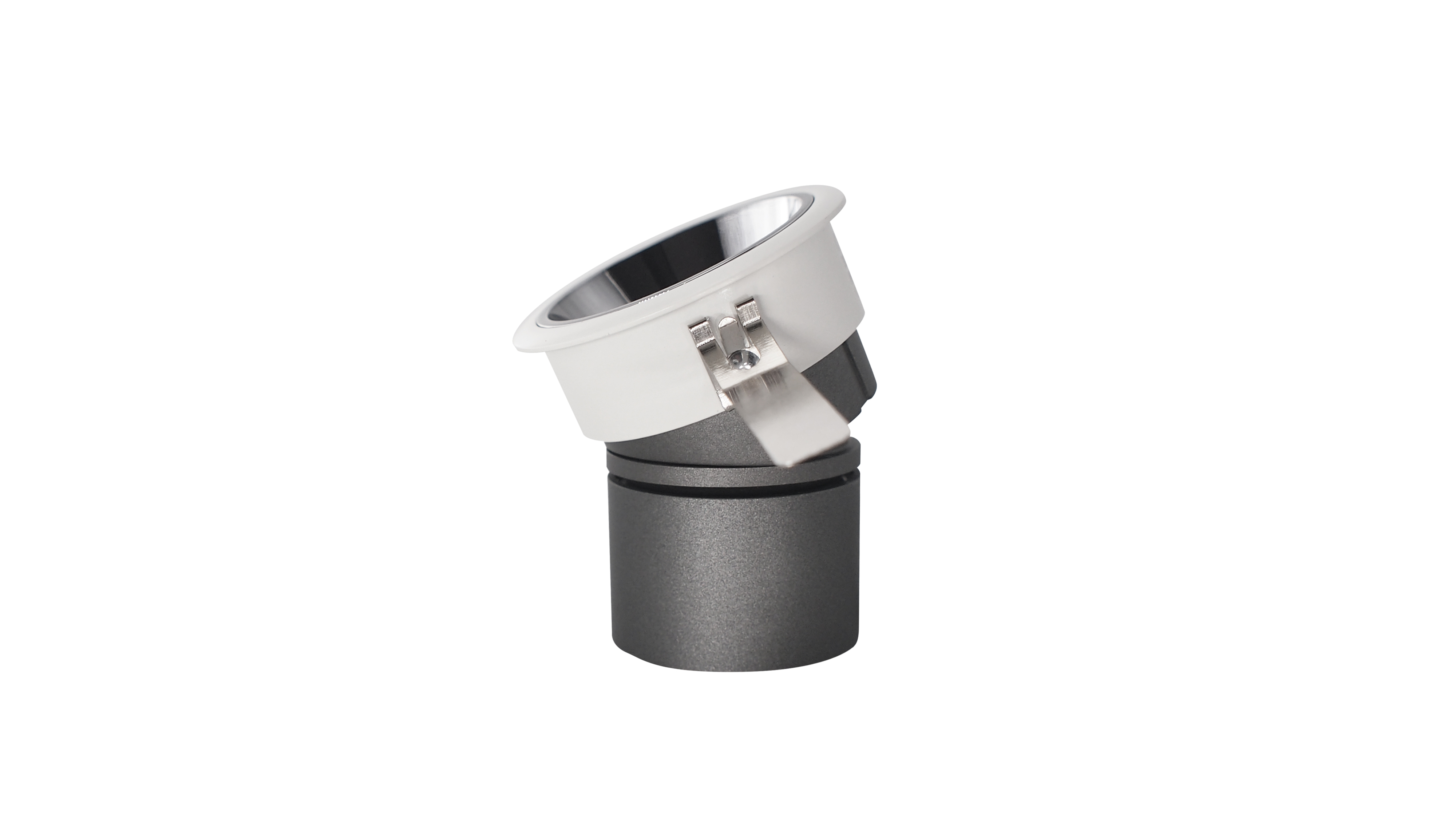

CS-Q8925-05S | 5W | Φ60*69 | Φ55 | Bridgelux | 2700K / 3000K 3500K / 4000K |
15° / 24° 36° / 50° |
Adjustable Head Lens |
 |
 |

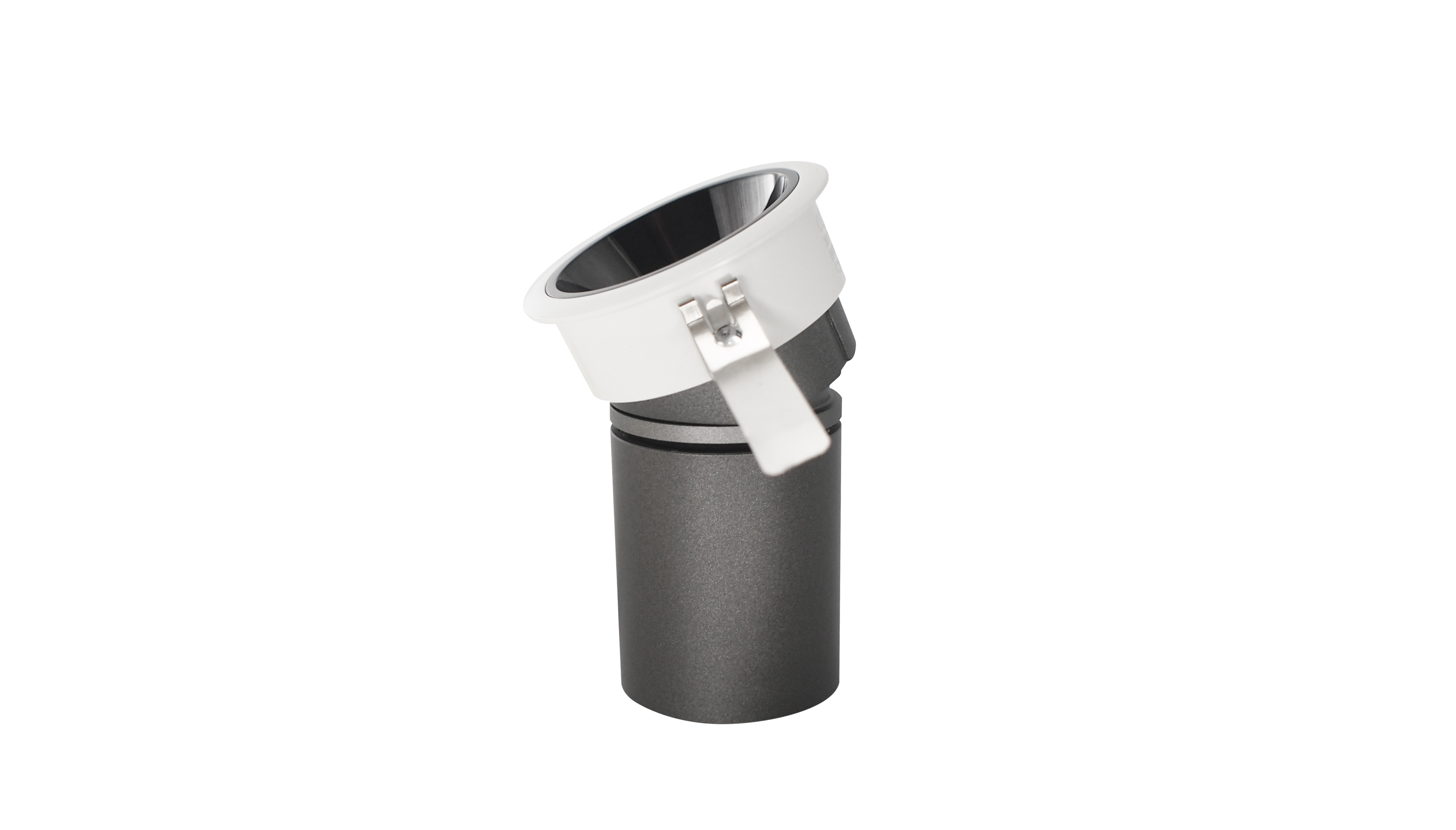

CS-Q8925-08S | 8W | Φ60*92 | ||||||
 |

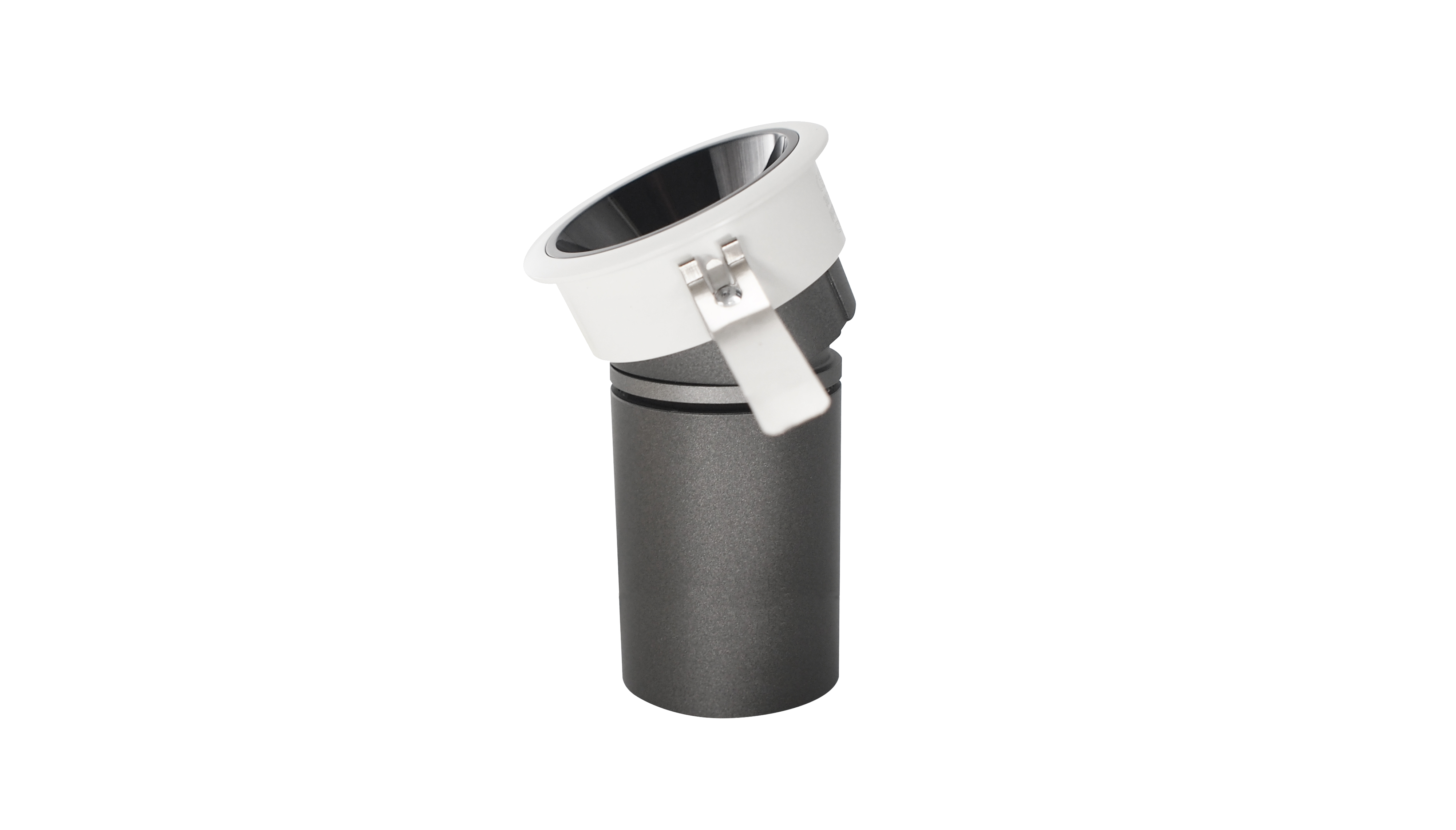

CS-Q8925-11S | 11W | Φ60*108 | ||||||
 |

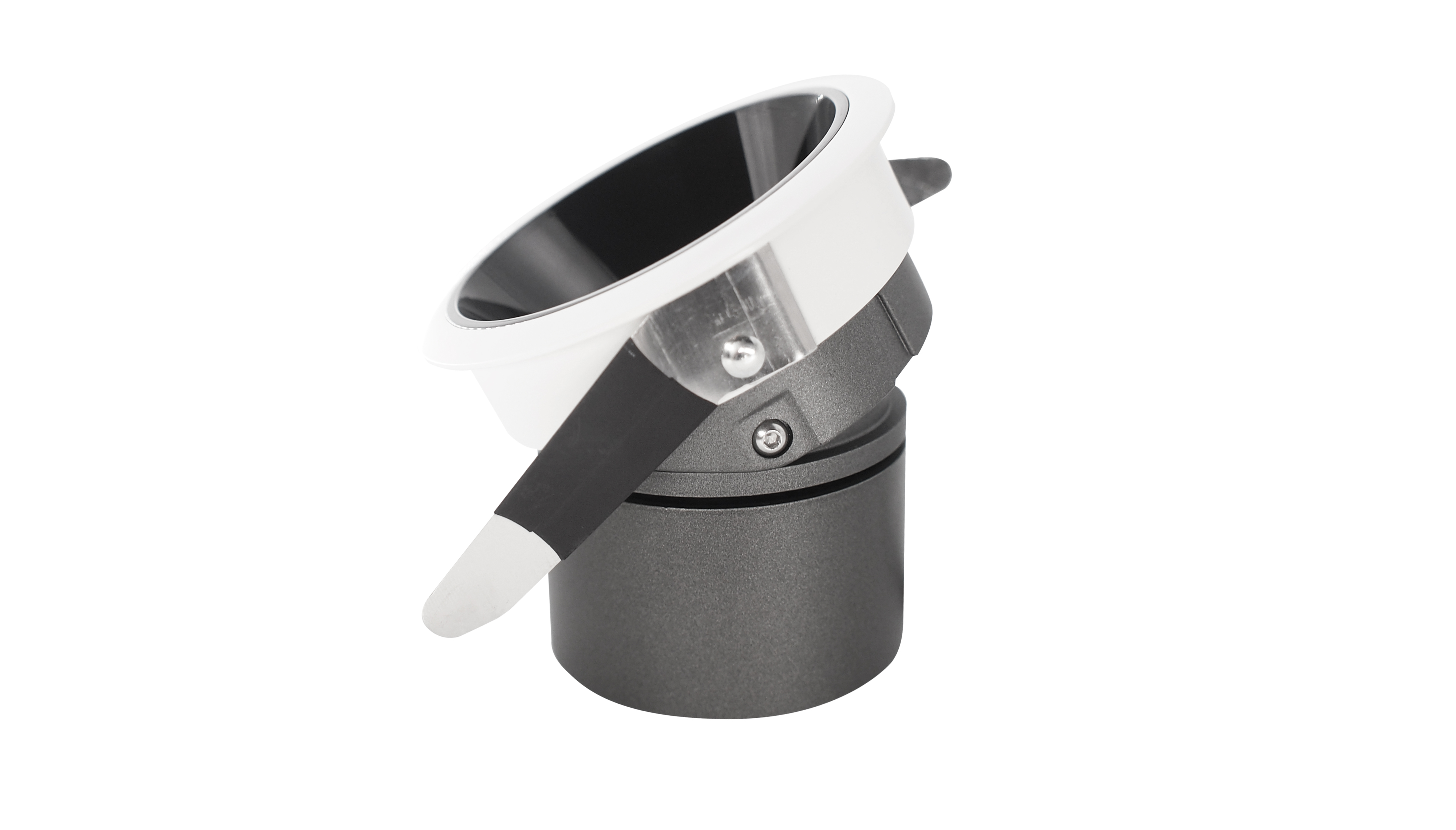

CS-Q8945-07S | 7W | Φ82*79 | Φ75 | Bridgelux | 2700K / 3000K 3500K / 4000K 5000K / 6000K |
15° / 24° 36° / 50° |
Adjustable Head Lens |
|
 |

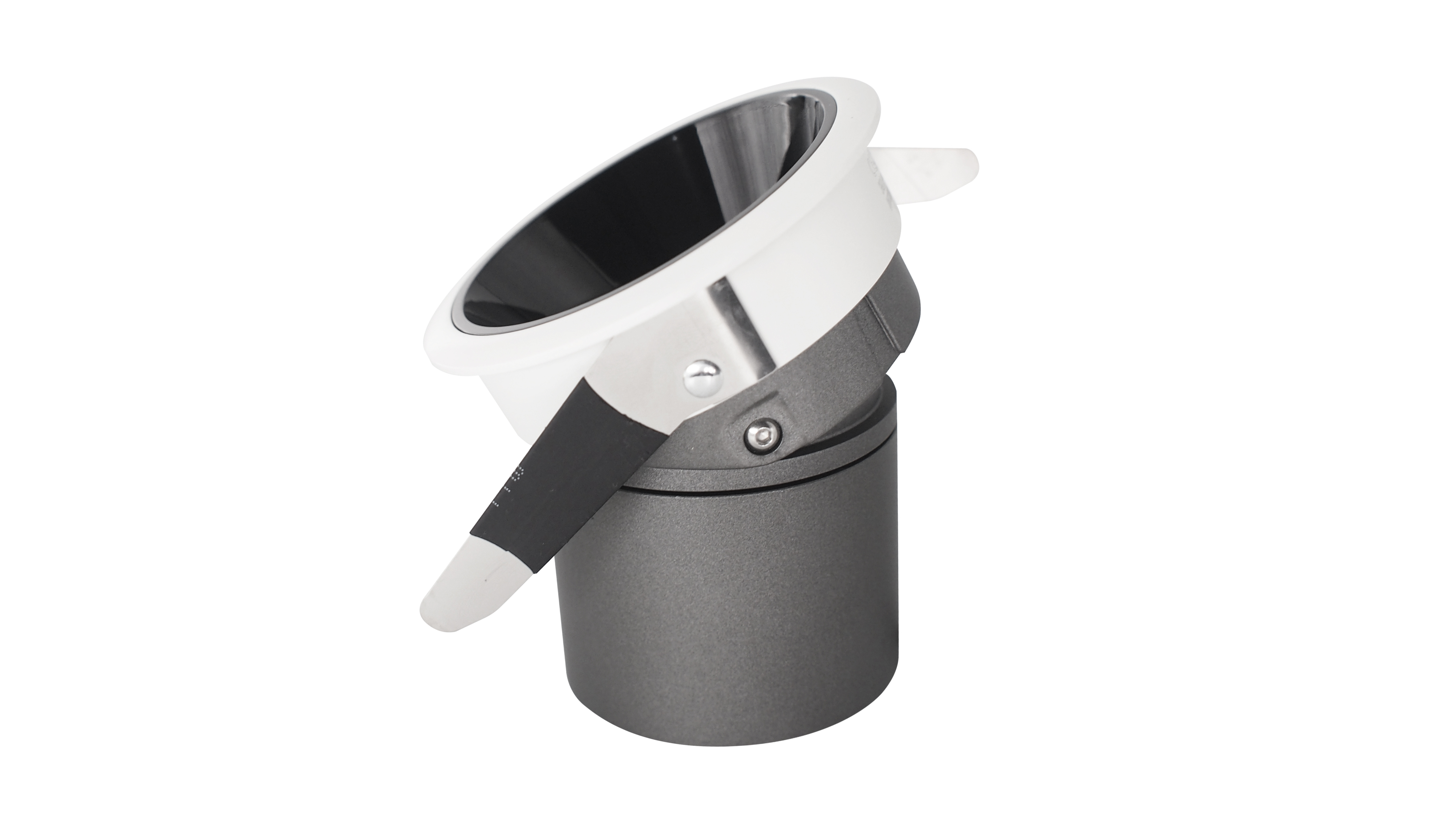

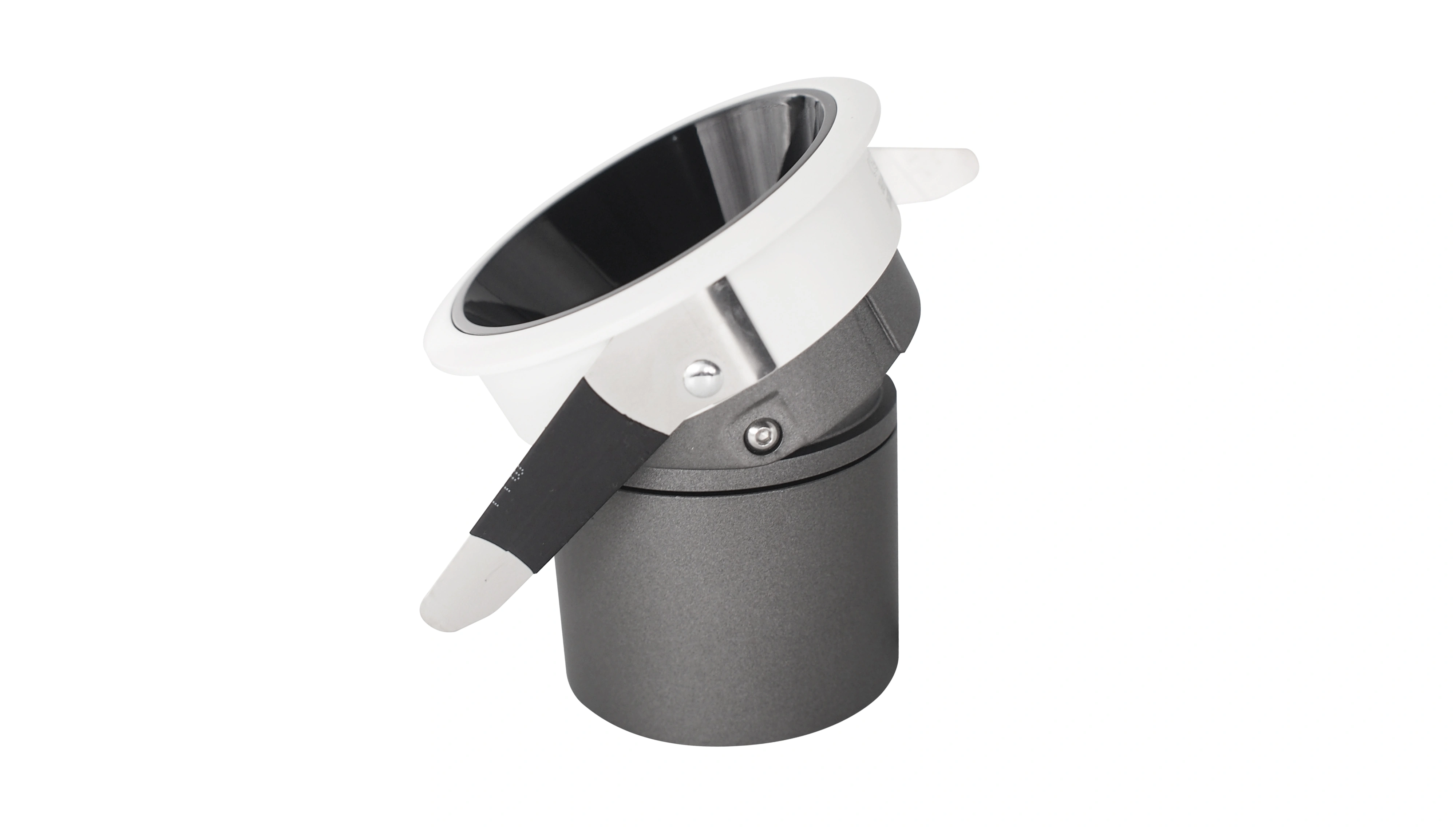

CS-Q8945-11S | 11W | Φ82*89 | ||||||
 |

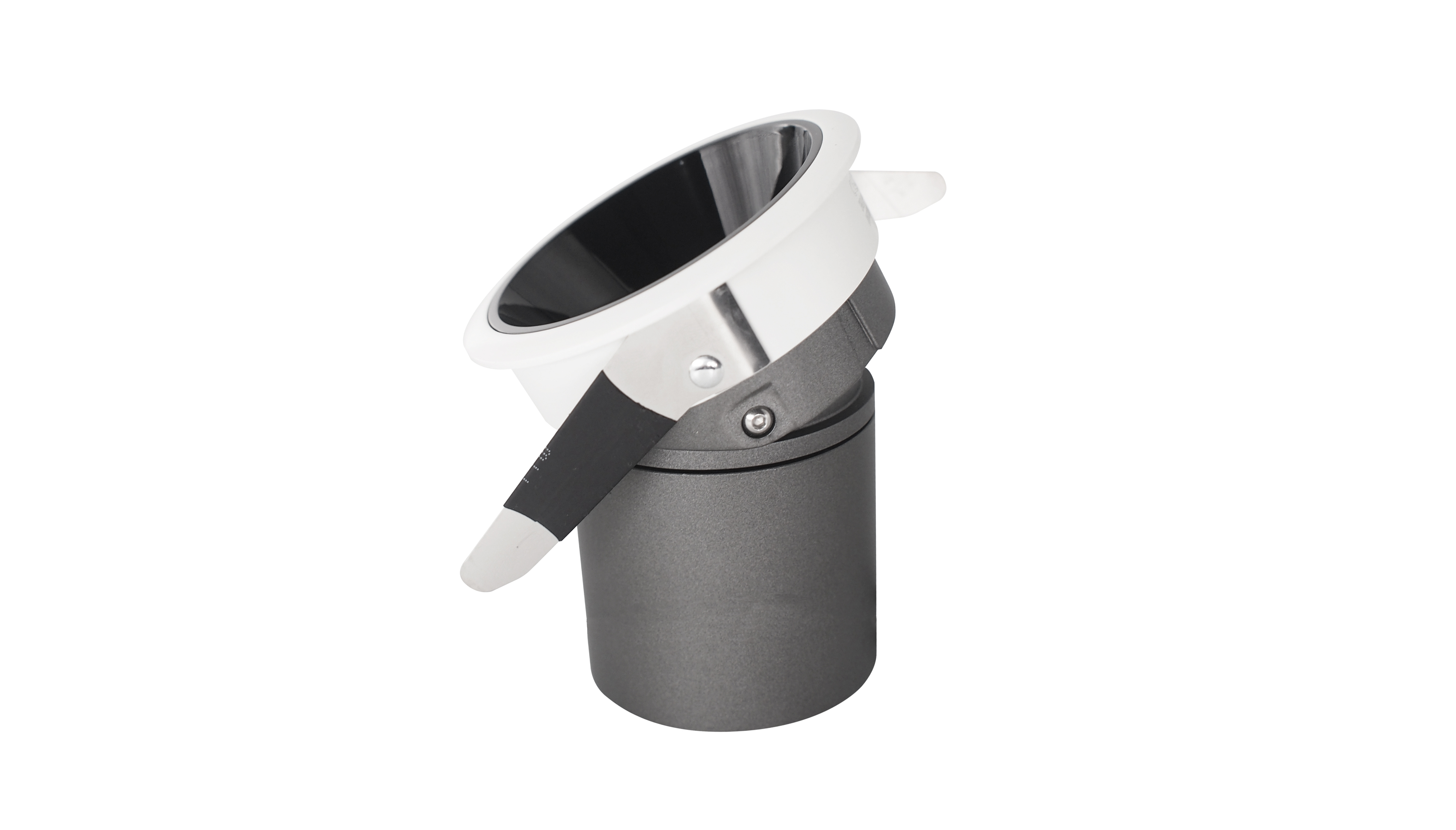

CS-Q8945-15S | 15W | Φ82*112 | ||||||
 |

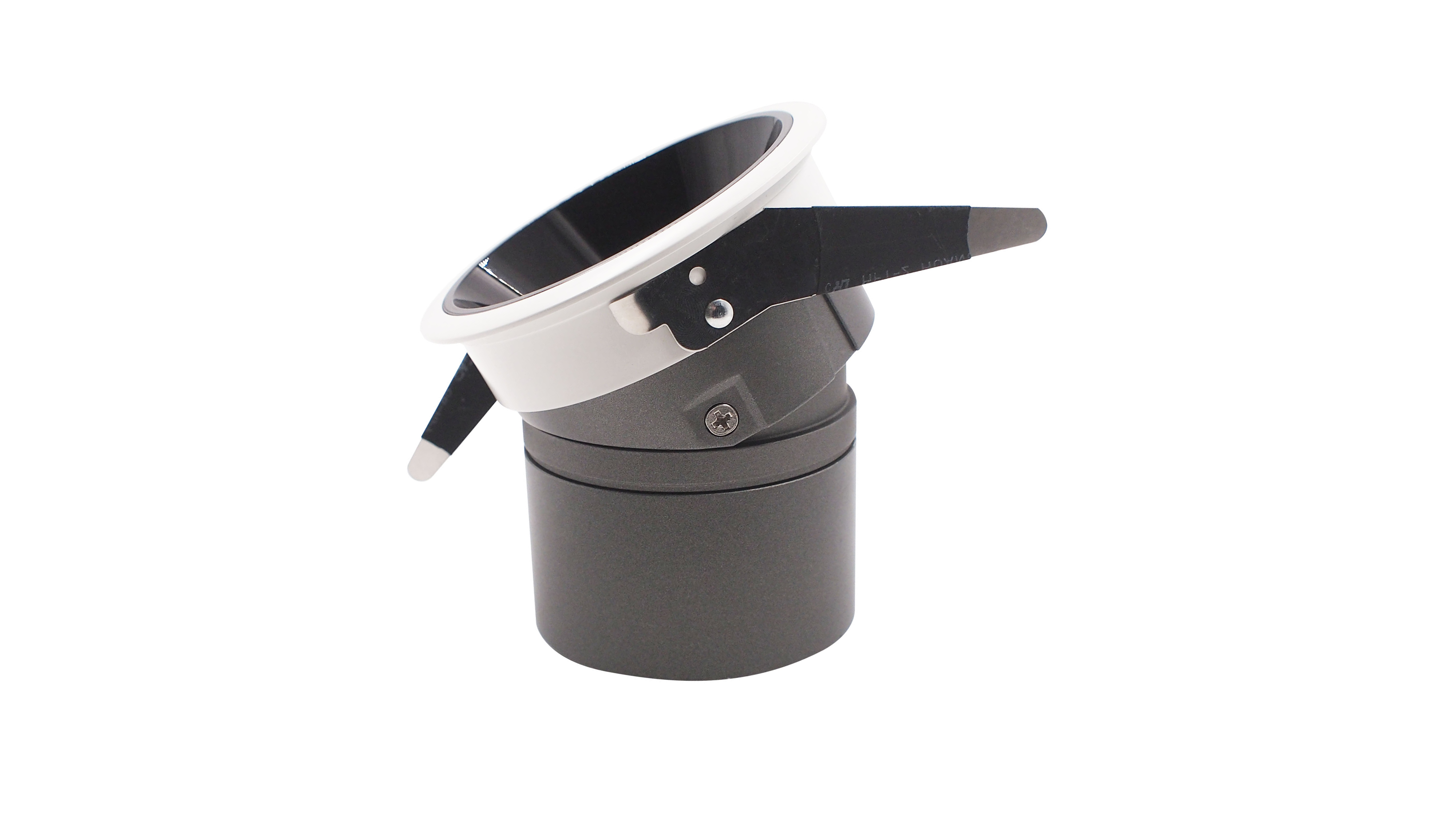

CS-Q8965-15S | 15W | Φ104*108 | Φ95 | Bridgelux | 2700K / 3000K 3500K / 4000K 5000K / 6000K |
15° / 24° 36° / 50° |
Adjustable Head Lens |
|
 |
CS-Q8965-18S | 18W | Φ104*123 | ||||||
 |

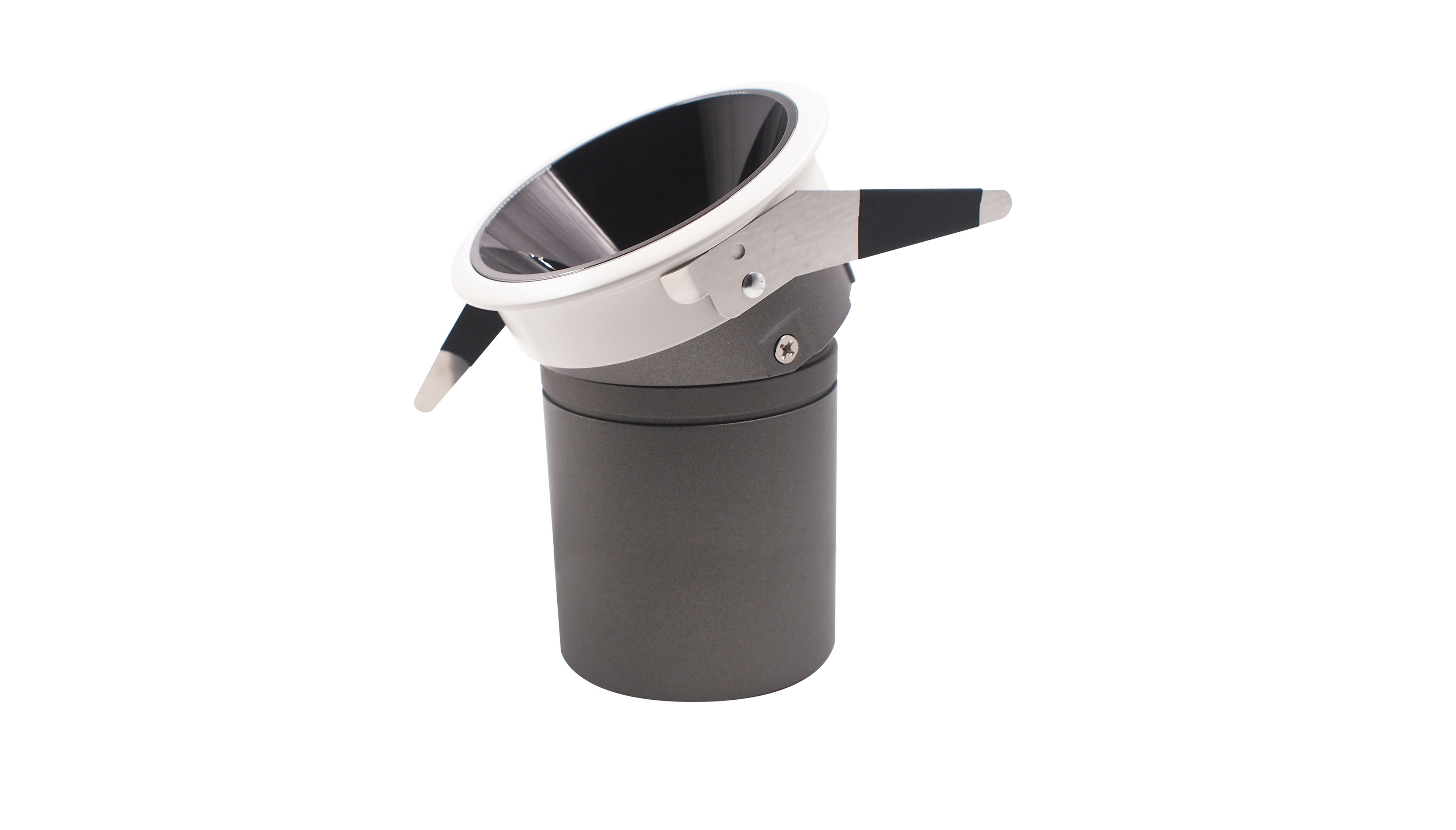

CS-Q8965-24S | 24W | Φ104*145 |
