| Image | Model Code | Power | Overall Dimension (mm) | Cutout Dimension (mm) | Standard Light Source |
Color Temperature | Beam Angle | Description | Inner Ring Color |
|---|---|---|---|---|---|---|---|---|---|
 |

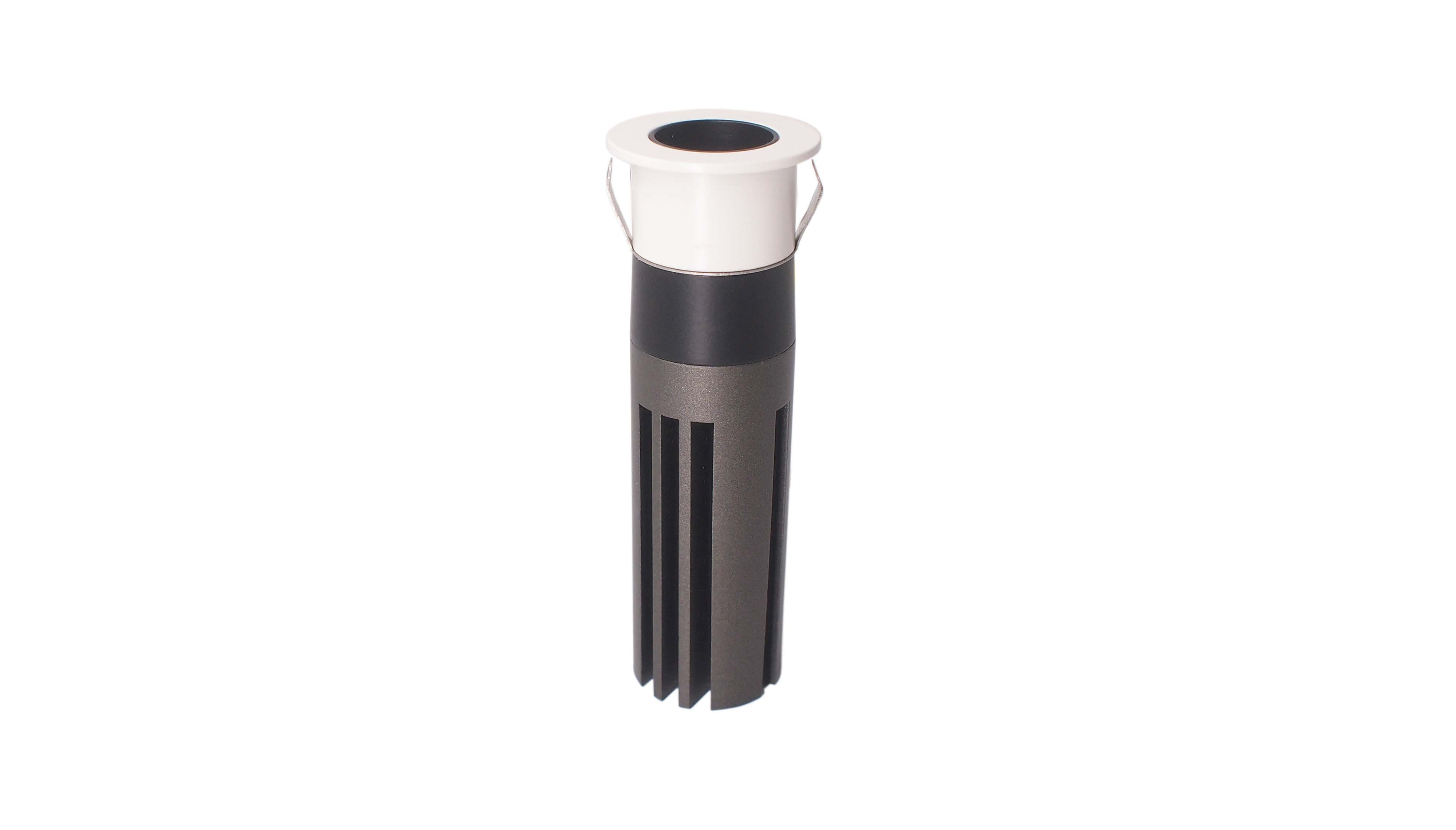

CS-Q8302-07S | 7W | Φ29*88 | Φ25 | Luminus Cree |
2700K / 3000K 3500K / 4000K |
10° / 15° / 30° | Fixed Head Lens |
Gun Black |
 |

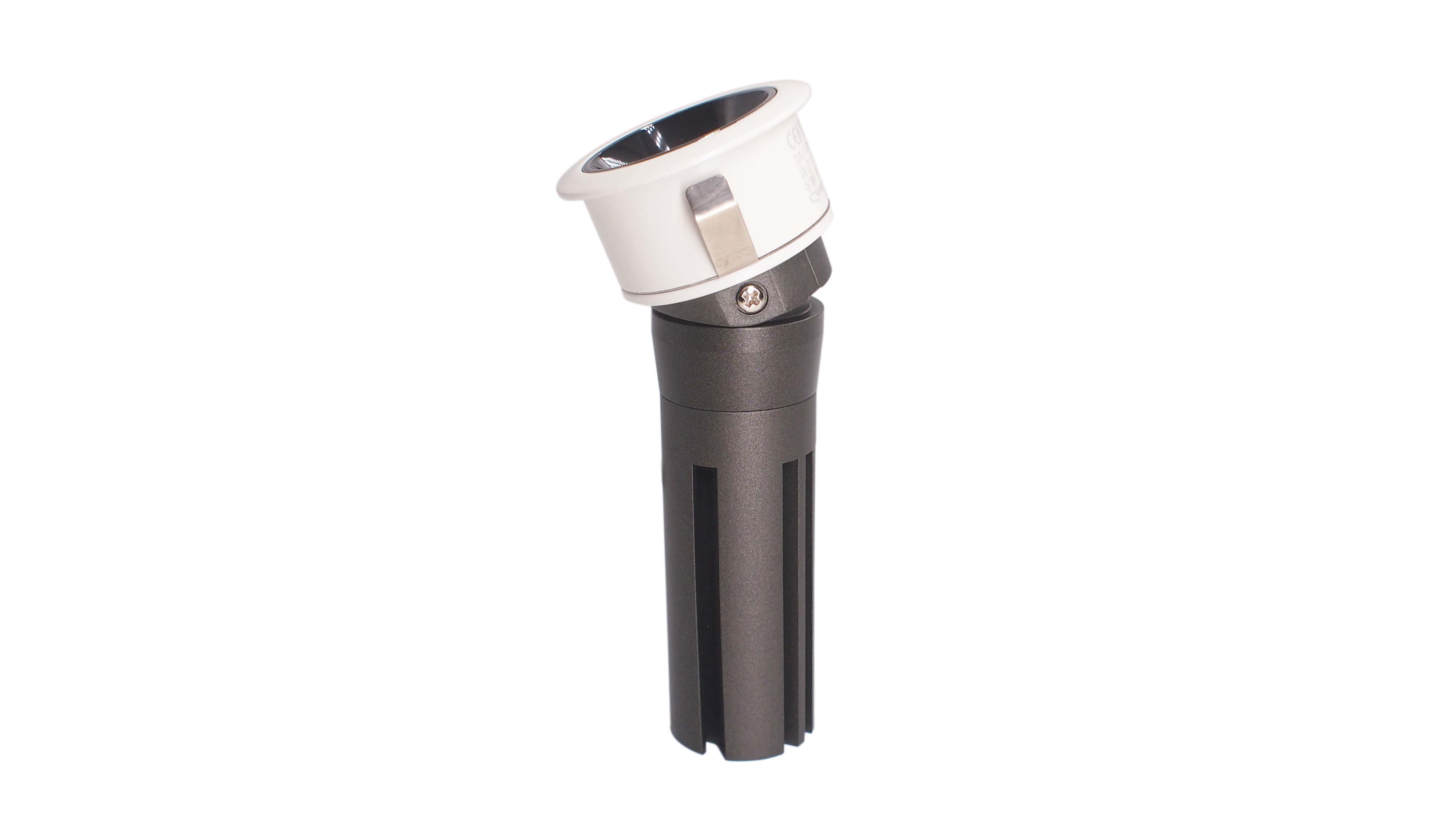

CS-Q8303-07S | 7W | Φ39*99 | Φ35 | Luminus Cree |
2700K / 3000K 3500K / 4000K |
10° / 15° / 30° | Adjustable Head Lens |
Gun Black |
 |

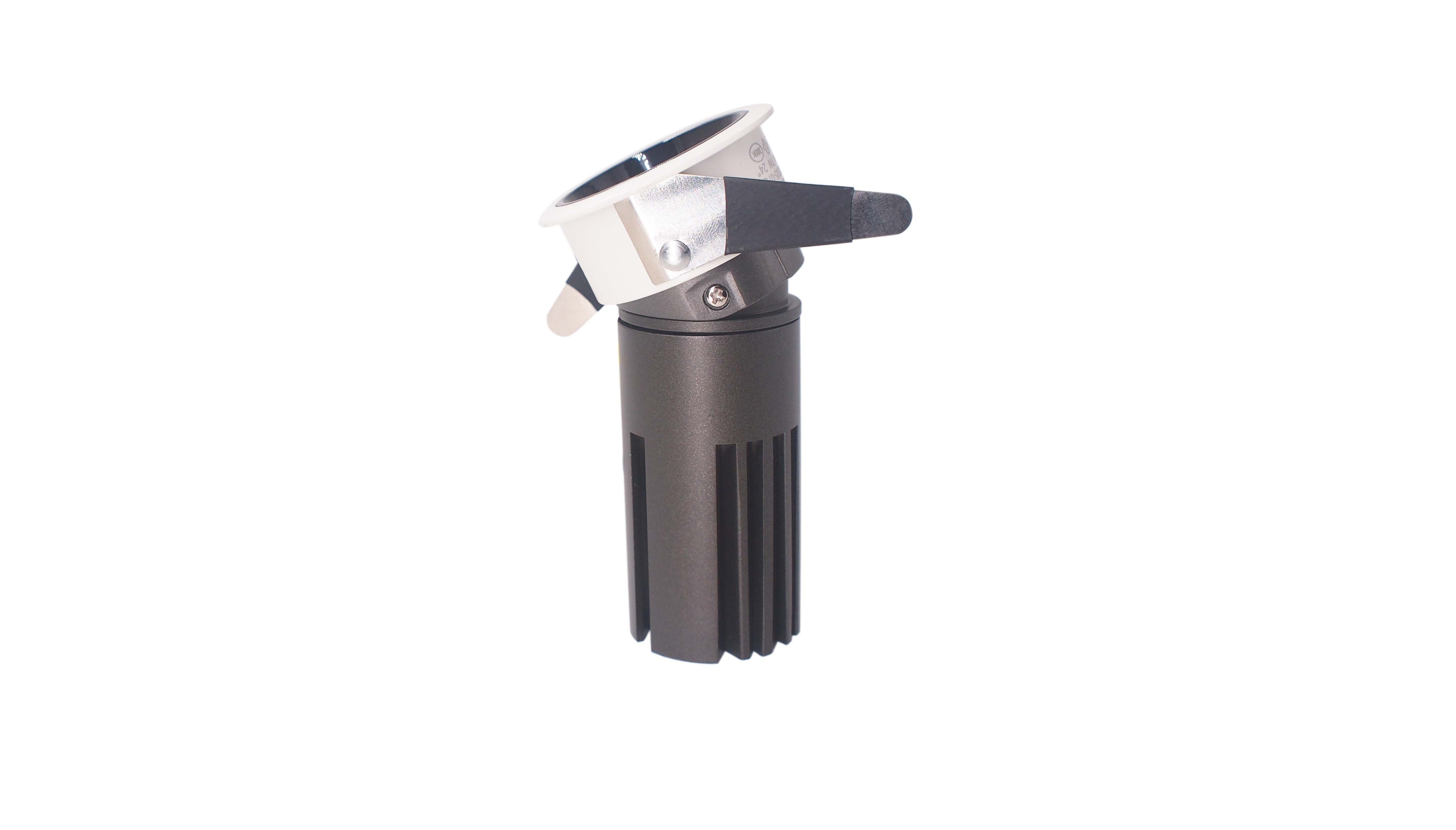

CS-Q8305-07S | 7W | Φ49*99 | Φ45 | Bridgelux | 2700K / 3000K 3500K / 4000K 5000K / 6000K |
15° / 24° / 36° | Adjustable Head Lens |
Gun Black |
 |

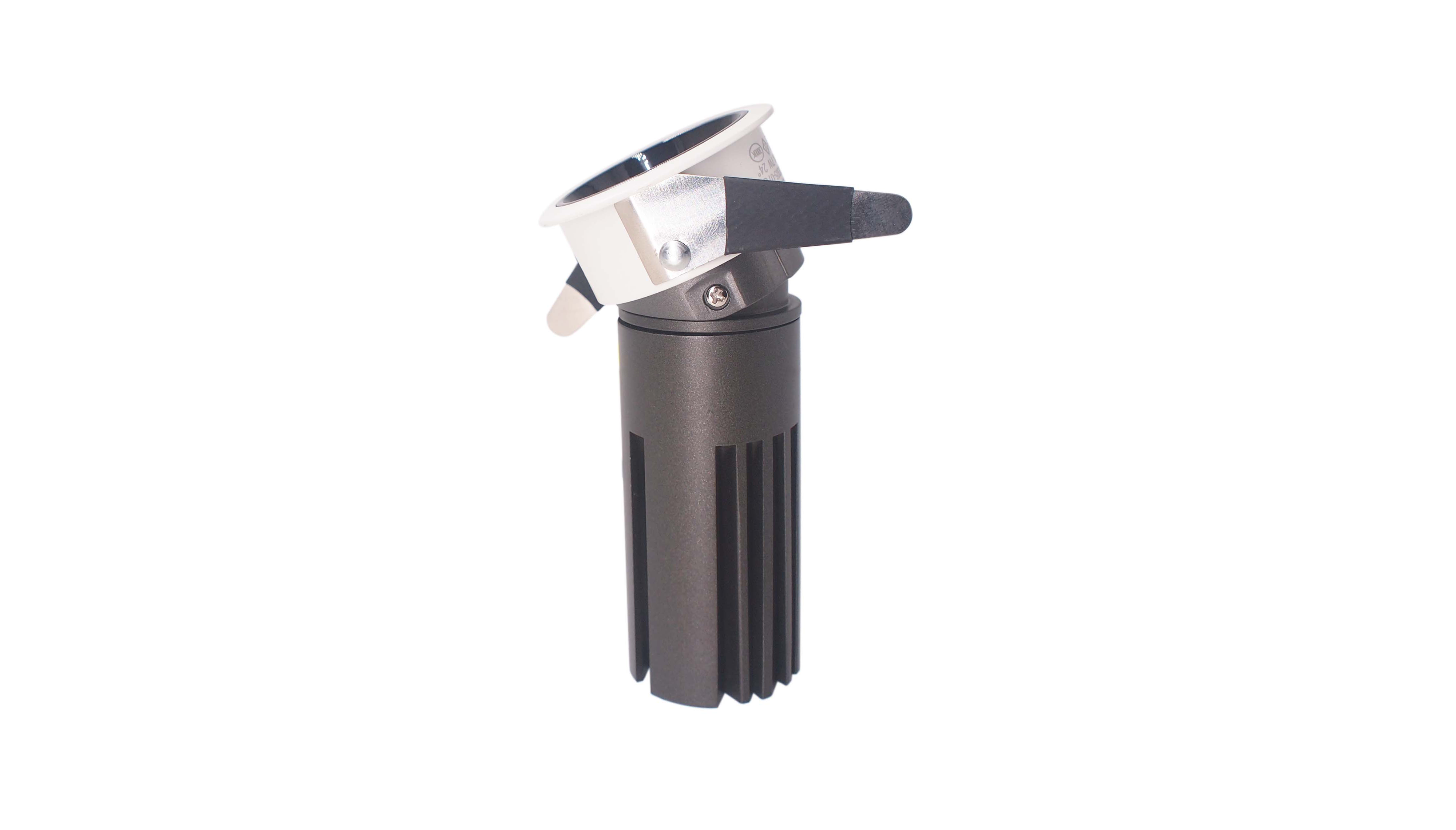

CS-Q8305-10S | 10W | Φ49*129 | ||||||
 |

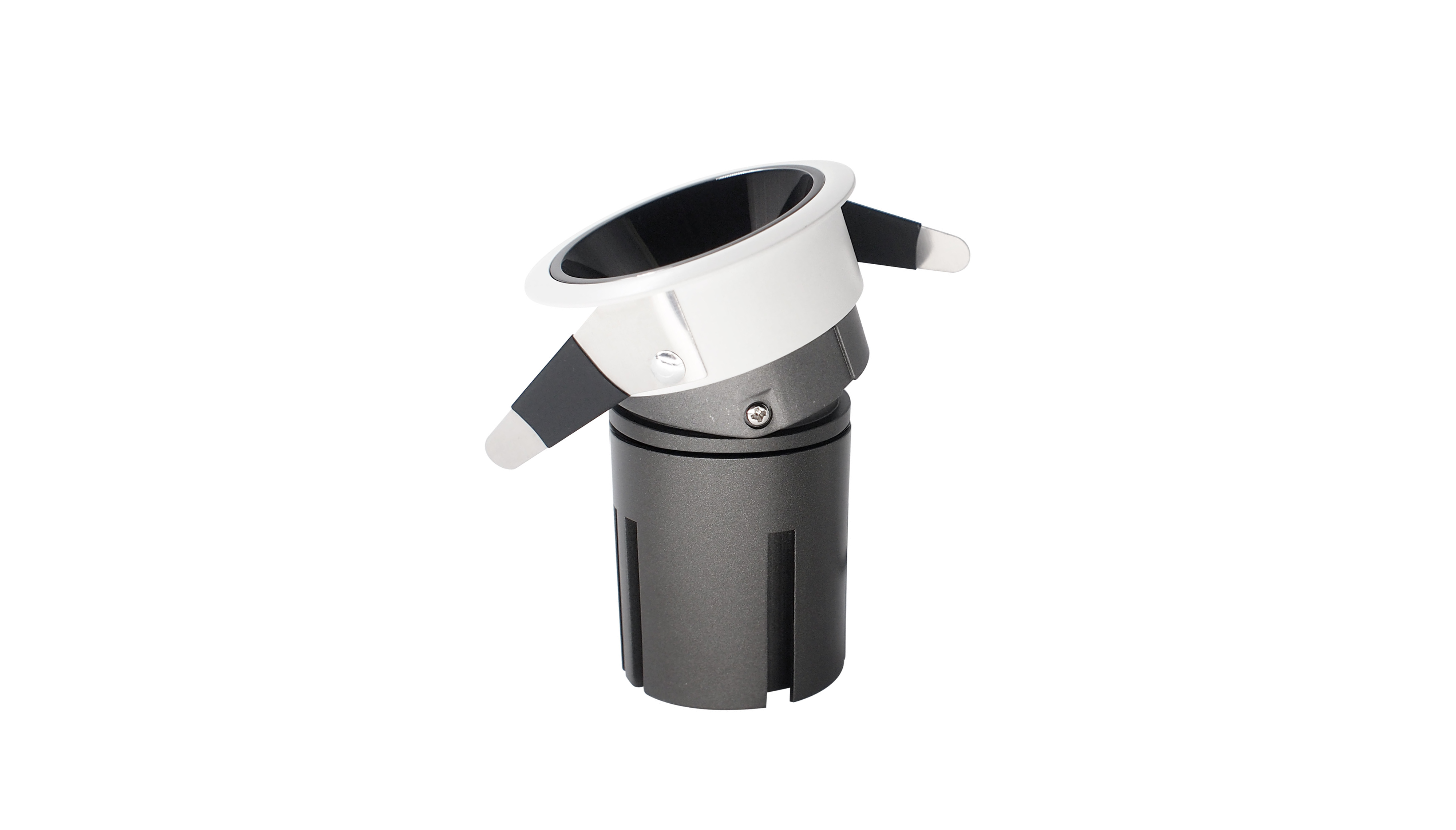

CS-Q8325-07S | 7W | Φ60*85 | Φ55 | Bridgelux | 2700K / 3000K 3500K / 4000K 5000K / 6000K |
15° / 24° 36° / 50° |
Adjustable Head Lens |
 |
 |

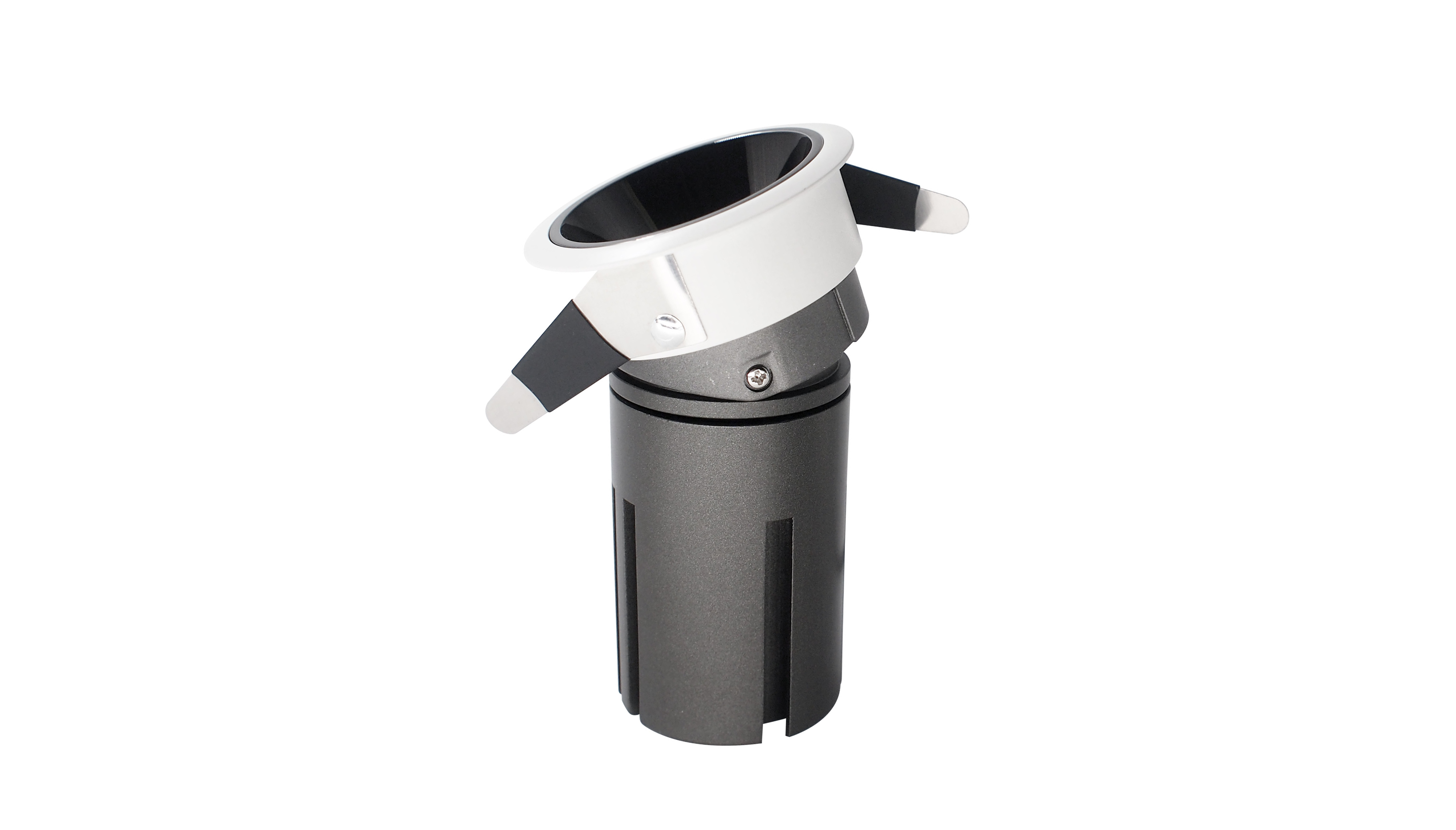

CS-Q8325-10S | 10W | Φ60*104 | ||||||
 |
CS-Q8345-08S | 8W | Φ82*80 | Φ75 | Bridgelux | 2700K / 3000K 3500K / 4000K 5000K / 6000K |
15° / 24° 36° / 50° |
Adjustable Head Lens |
|
|

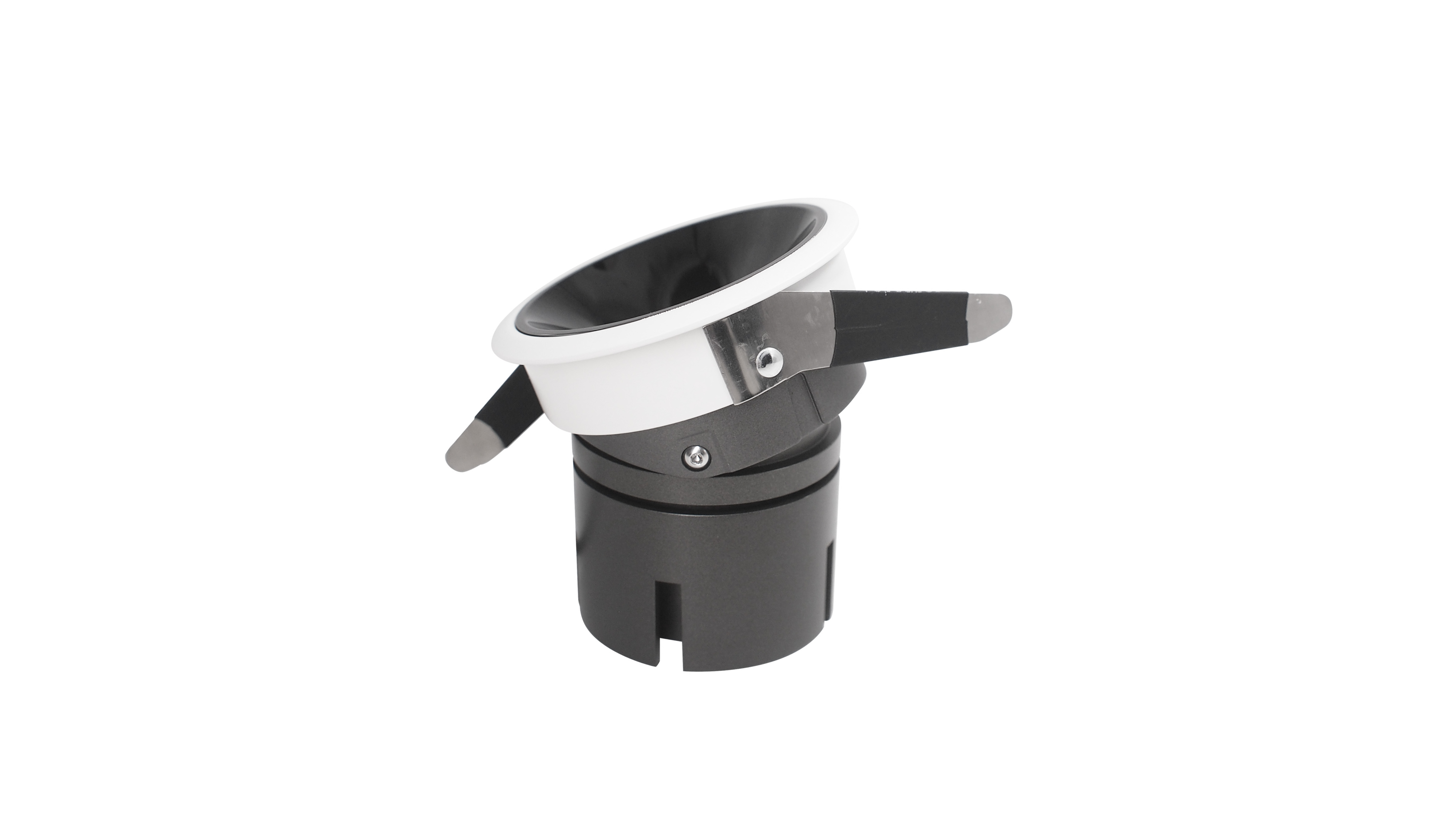

CS-Q8345-12S | 12W | Φ82*80 | ||||||
 |
CS-Q8345-15S | 15W | Φ82*111 | ||||||
|

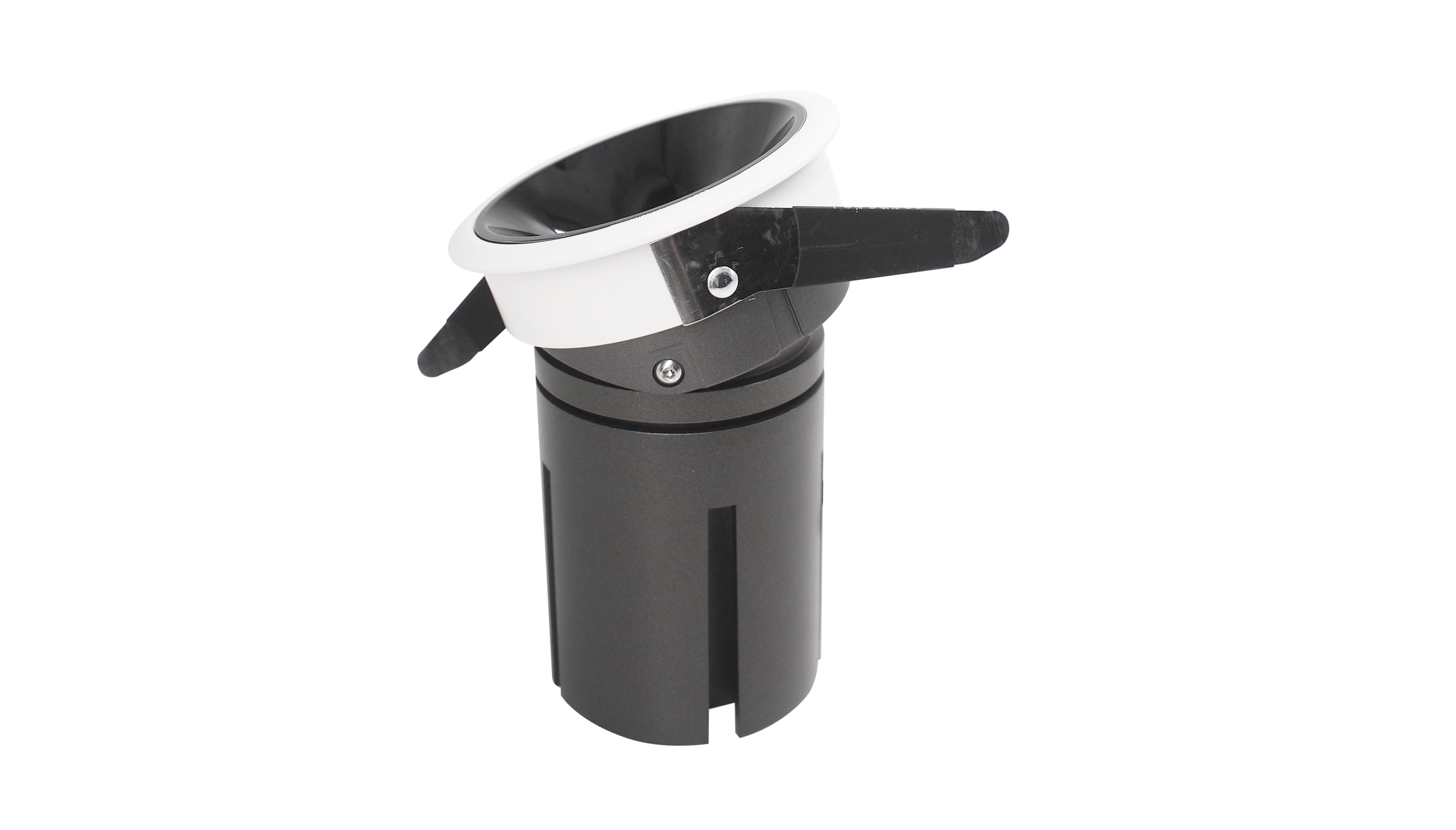

CS-Q8345-20S | 20W | Φ82*111 | ||||||
 |

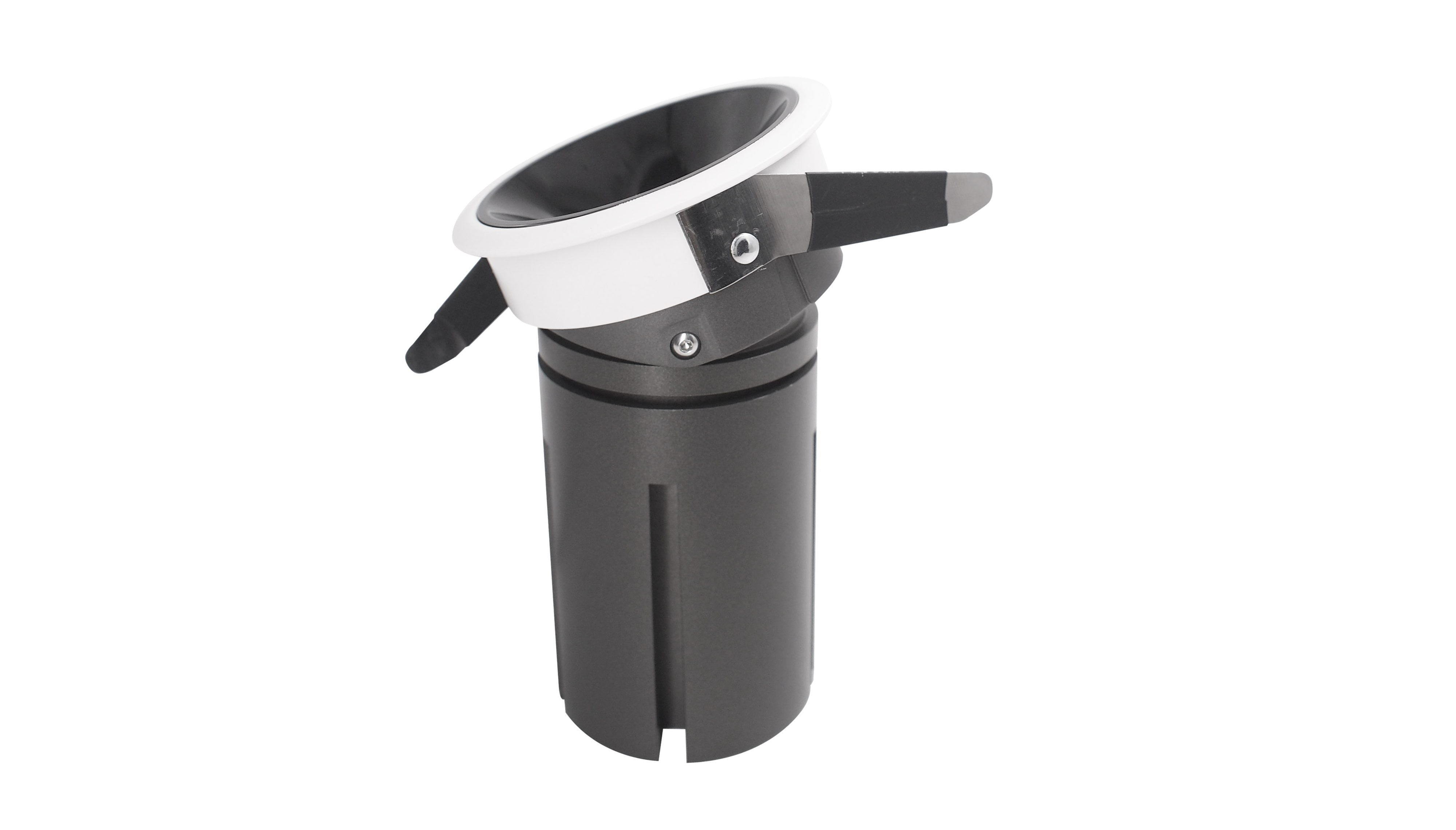

CS-Q8345-24S | 24W | Φ82*128 | ||||||
 |

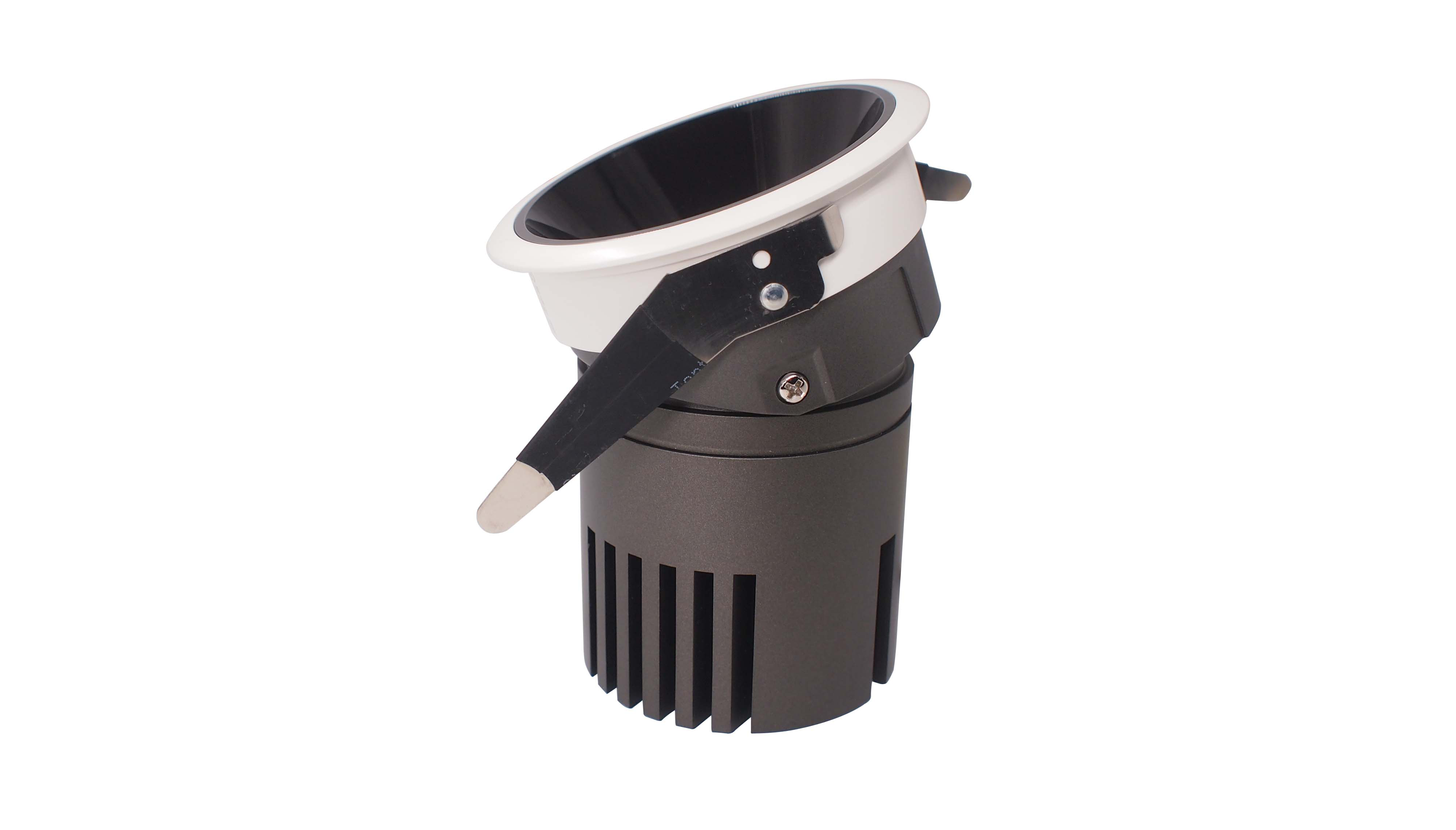

CS-Q8365-30S | 30W | Φ104*128 | Φ95 | Bridgelux | 2700K / 3000K 3500K / 4000K 5000K / 6000K |
15° / 24° 36° / 50° |
Adjustable Head Lens |
|
|
CS-Q8365-35S | 35W | Φ104*128 | ||||||
|
CS-Q8365-40S | 40W | Φ104*128 |
