Classic Lite

Power: 5W - 12W
Beam Angle: 15° / 24° / 36°
Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K / 6000K
Cutout Dimension: Φ55mm / Φ75mm
Inner Ring Color: Gun Black / Matte Black / Bright Gray / Bright Silver / Matte Silver / Matte White
Material: Cold-Forged Aluminum Alloy
Dimming: TRIAC / 0-10V / DALI / Zigbee
Light Source: Bridgelux / Luminus / Cree
CRI: 90 / 95

Model Code	Power	Overall Dimension (mm)	Cutout Dimension (mm)	Standard Light Source	Color Temperature	Beam Angle	Description

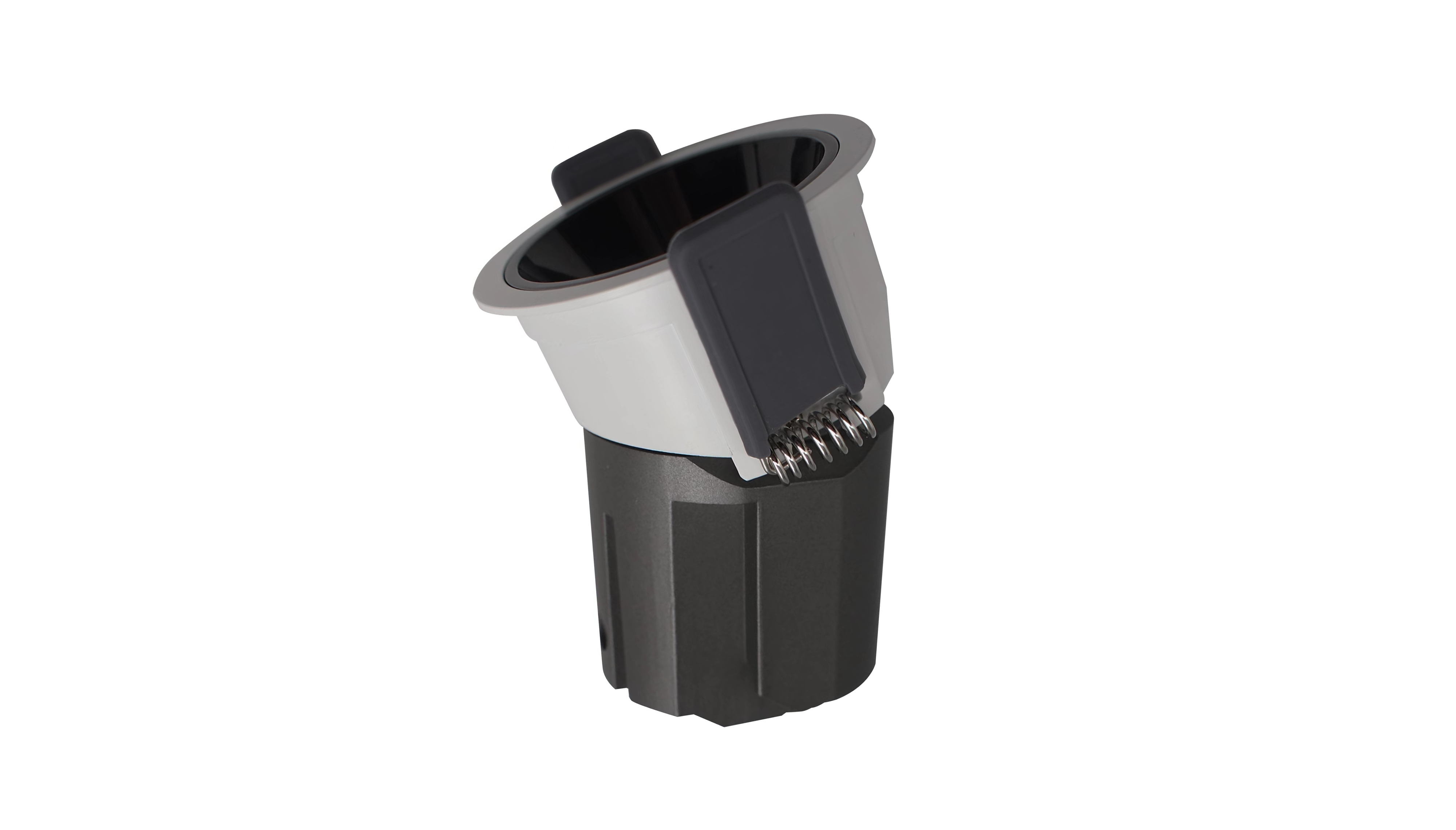

CS-Q6935-05S	5W	Φ60*79	Φ55	Bridgelux	2700K / 3000K 3500K / 4000K 5000K / 6000K	15° / 24° / 36°	Adjustable Head Lens
CS-Q6935-08S	8W	Φ60*79	Φ55	Bridgelux	2700K / 3000K 3500K / 4000K 5000K / 6000K	15° / 24° / 36°	Adjustable Head Lens
CS-Q6945-08S	8W	Φ81*76	Φ75	Bridgelux	2700K / 3000K 3500K / 4000K 5000K / 6000K	15° / 24° / 36°	Adjustable Head Lens
CS-Q6945-12S	12W	Φ81*76	Φ75	Bridgelux	2700K / 3000K 3500K / 4000K 5000K / 6000K	15° / 24° / 36°	Adjustable Head Lens
