| Image | Model Code | Power | Overall Dimension (mm) | Cutout Dimension (mm) | Standard Light Source |
Color Temperature | Beam Angle | Description | Inner Ring Color |
|---|---|---|---|---|---|---|---|---|---|
 |

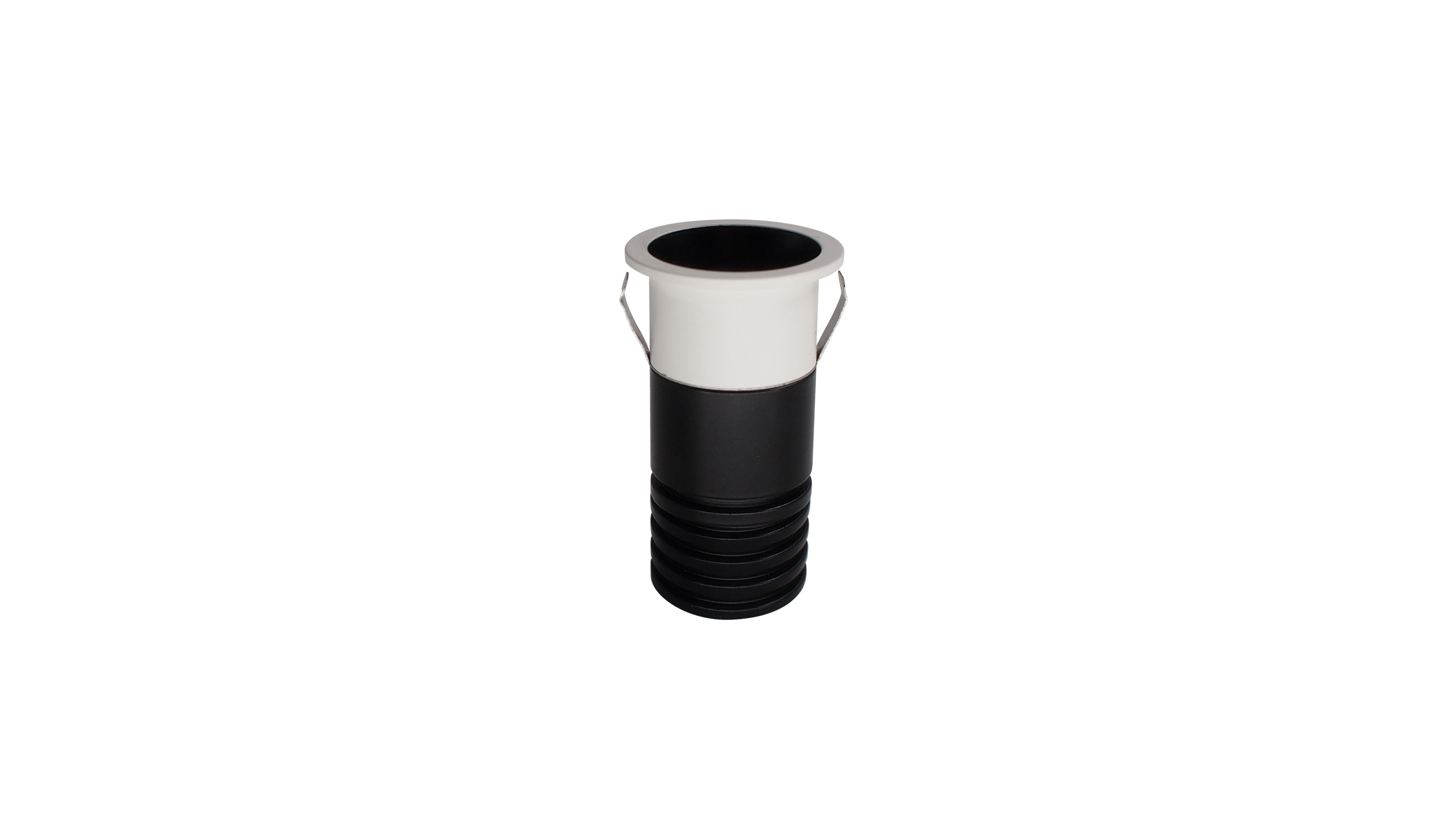

CS-Q8602-03S | 3W | Φ29*52 | Φ25 | Brigdelux | 2700K / 3000K 3500K / 4000K |
15° / 24° / 36° | Fixed Head Lens |
Matte Black |
 |

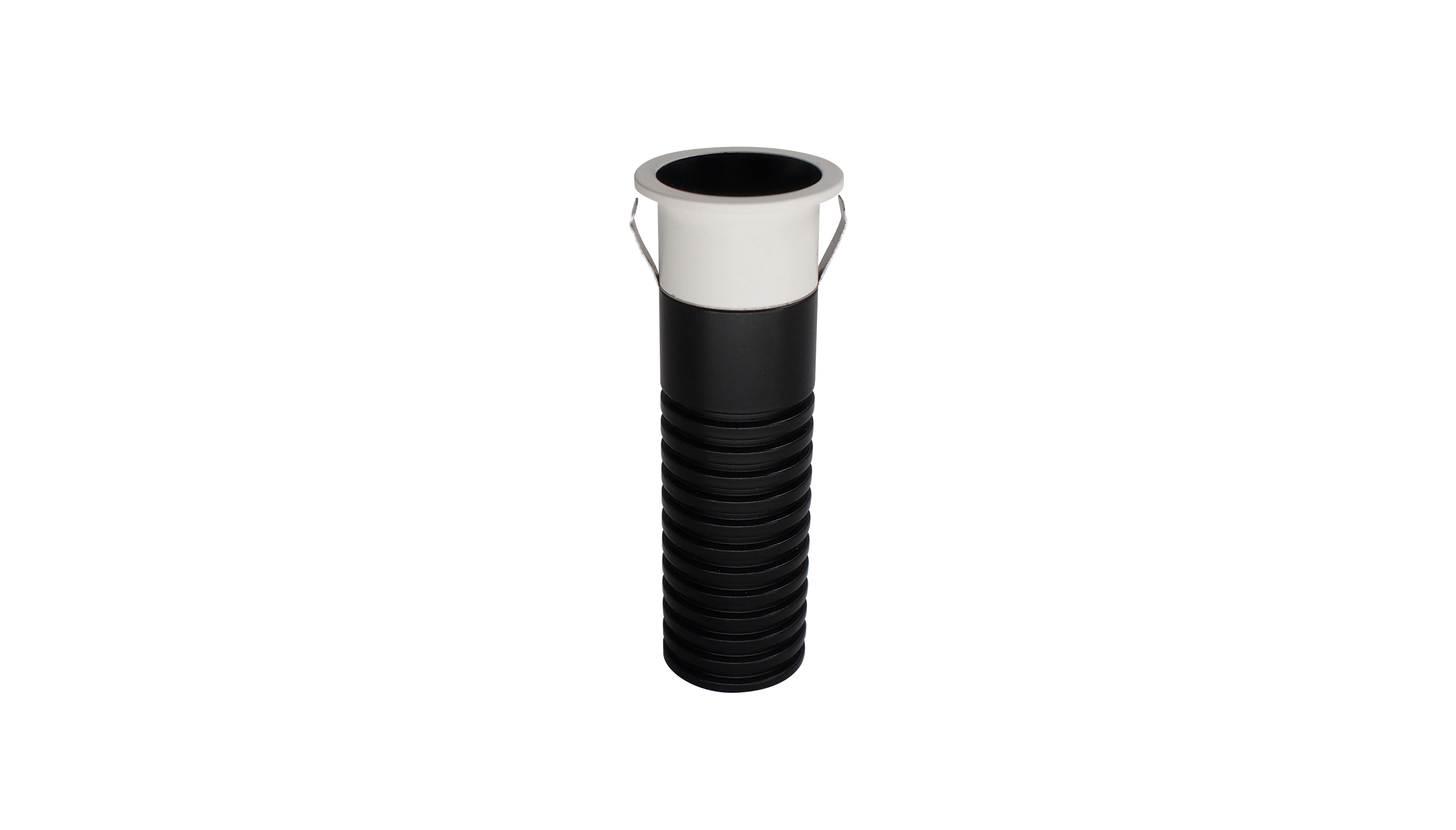

CS-Q8602-05S | 5W | Φ29*80 | ||||||
|
CS-Q8603-03S | 3W | Φ35*34 | Φ30 | Bridgelux Luminus |
2700K / 3000K 3500K / 4000K |
15° / 24° / 36° | Fixed Head Lens |
Matte Black |
 |

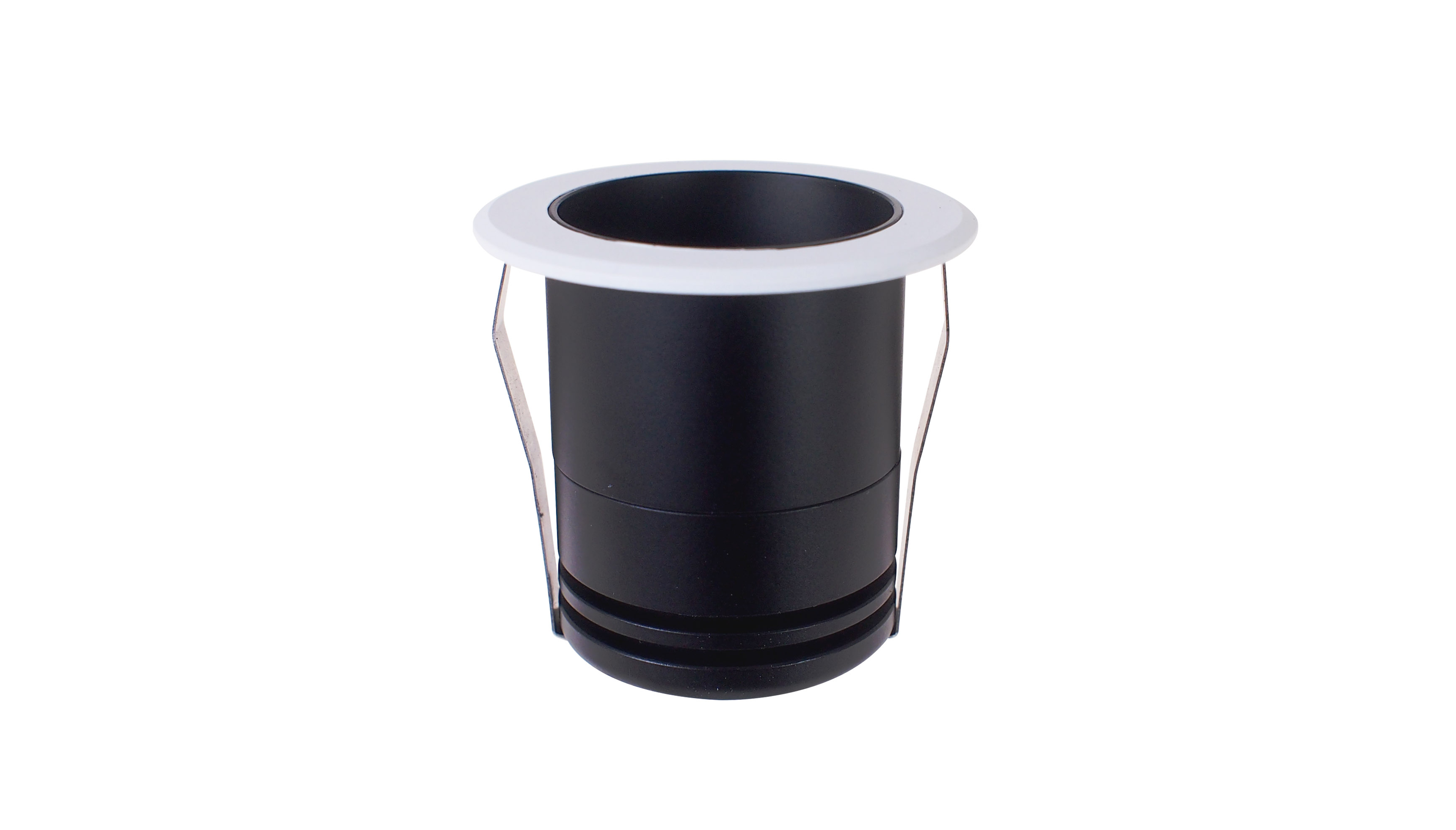

CS-Q8604-04S | 4W | Φ50*51 | Φ40 | Luminus | 2700K / 3000K 3500K / 4000K |
15° / 24° / 36° | Fixed Head Lens |
Matte Black |
 |

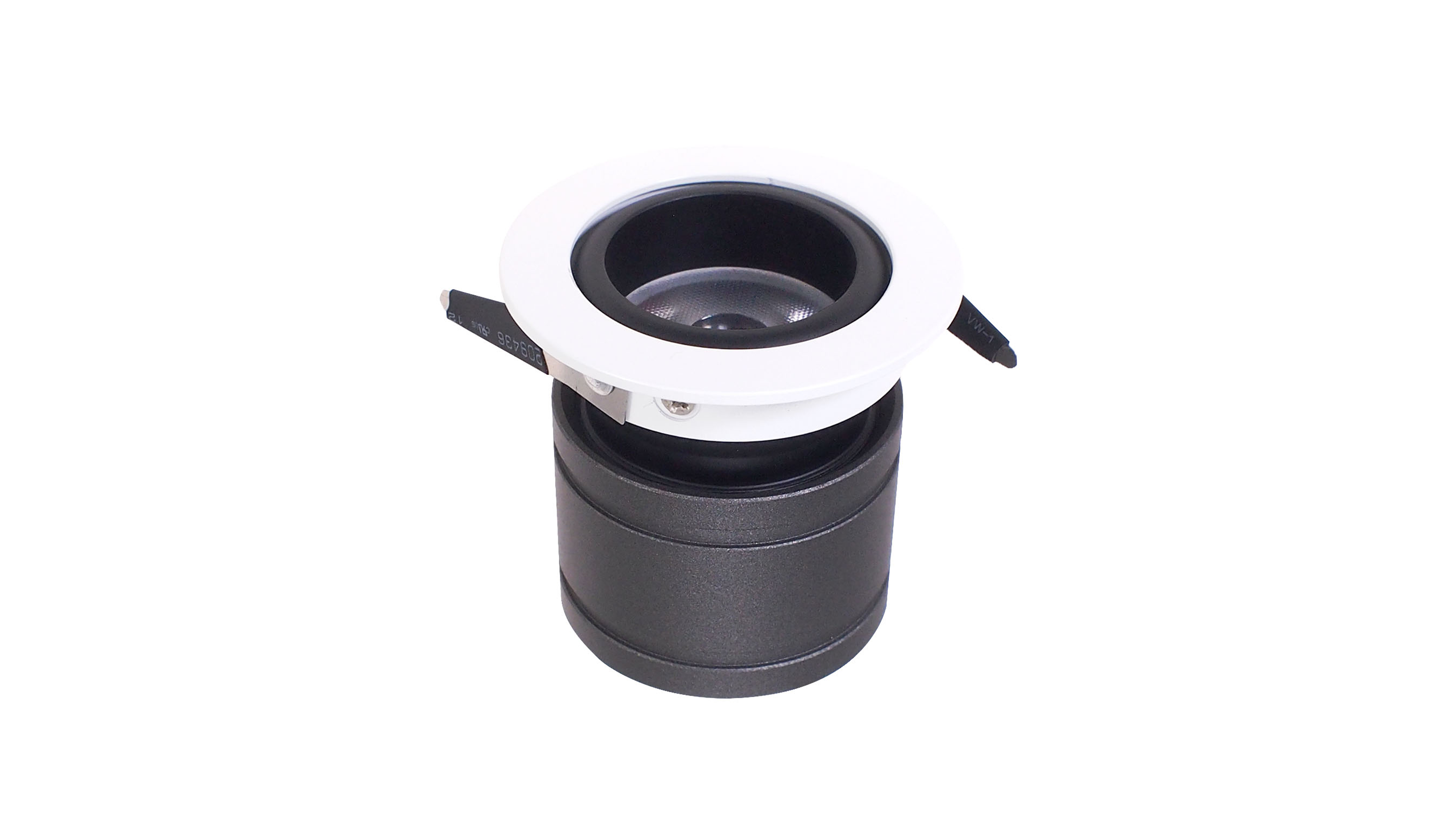

CS-Q8605-05S | 5W | Φ59*55 | Φ50 | Bridgelux Luminus |
2700K / 3000K 3500K / 4000K 5000K / 6000K |
15° / 24° / 36° | Adjustable Head Lens |
Matte Black |
