| Image | Model Code | Power | Overall Dimension (mm) | Cutout Dimension (mm) | Standard Light Source |
Color Temperature | Beam Angle | Description | Housing Color | Inner Ring Color |
|---|---|---|---|---|---|---|---|---|---|---|
 |

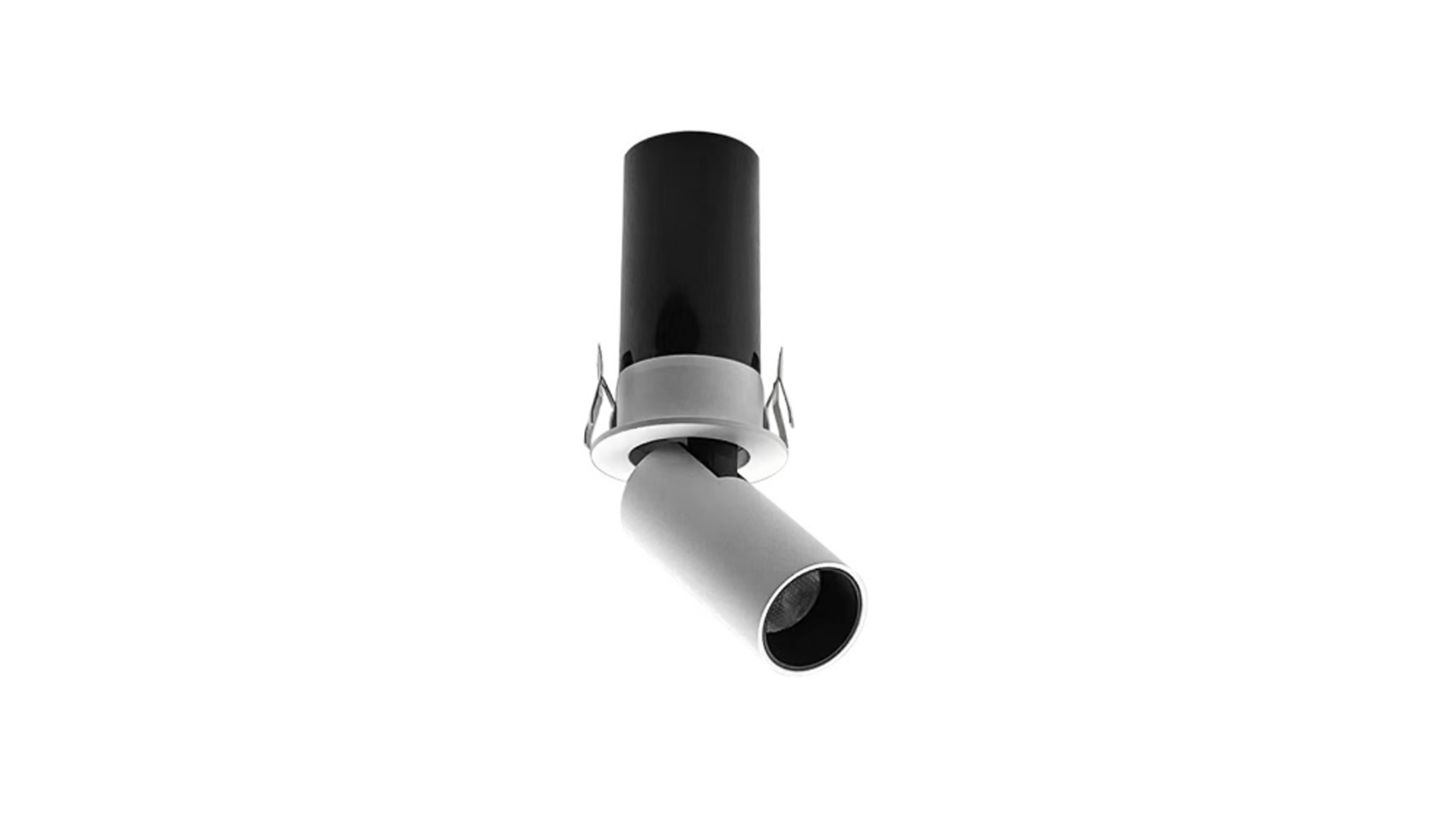

CS-Q0613-04S | 4W | Φ43*87 Light Cylinder Φ27*60 |
Φ35 | Bridgelux | 2700K / 3000K 3500K / 4000K 5000K / 6000K |
10° / 15° / 24° | Adjustable Head Lens |
Matte White | Matte Black |
|
CS-Q0615-05S | 5W | Φ63*112 Light Cylinder Φ38*73 |
Φ55 | Bridgelux | 2700K / 3000K 3500K / 4000K 5000K / 6000K |
24° | Adjustable Head Lens |
Matte White | Matte Black |
| CS-Q0615-08S | 8W | Φ85*102 Light Cylinder Φ52*74 |
Φ75 | |||||||
| CS-Q0615-12S | 12W | Φ109*120 Light Cylinder Φ63*83 |
Φ95 |
