| Image | Model Code | Power | Overall Dimension (mm) | Cutout Dimension (mm) | Standard Light Source |
Color Temperature | Beam Angle | Description | Inner Ring Color |
|---|---|---|---|---|---|---|---|---|---|
 |

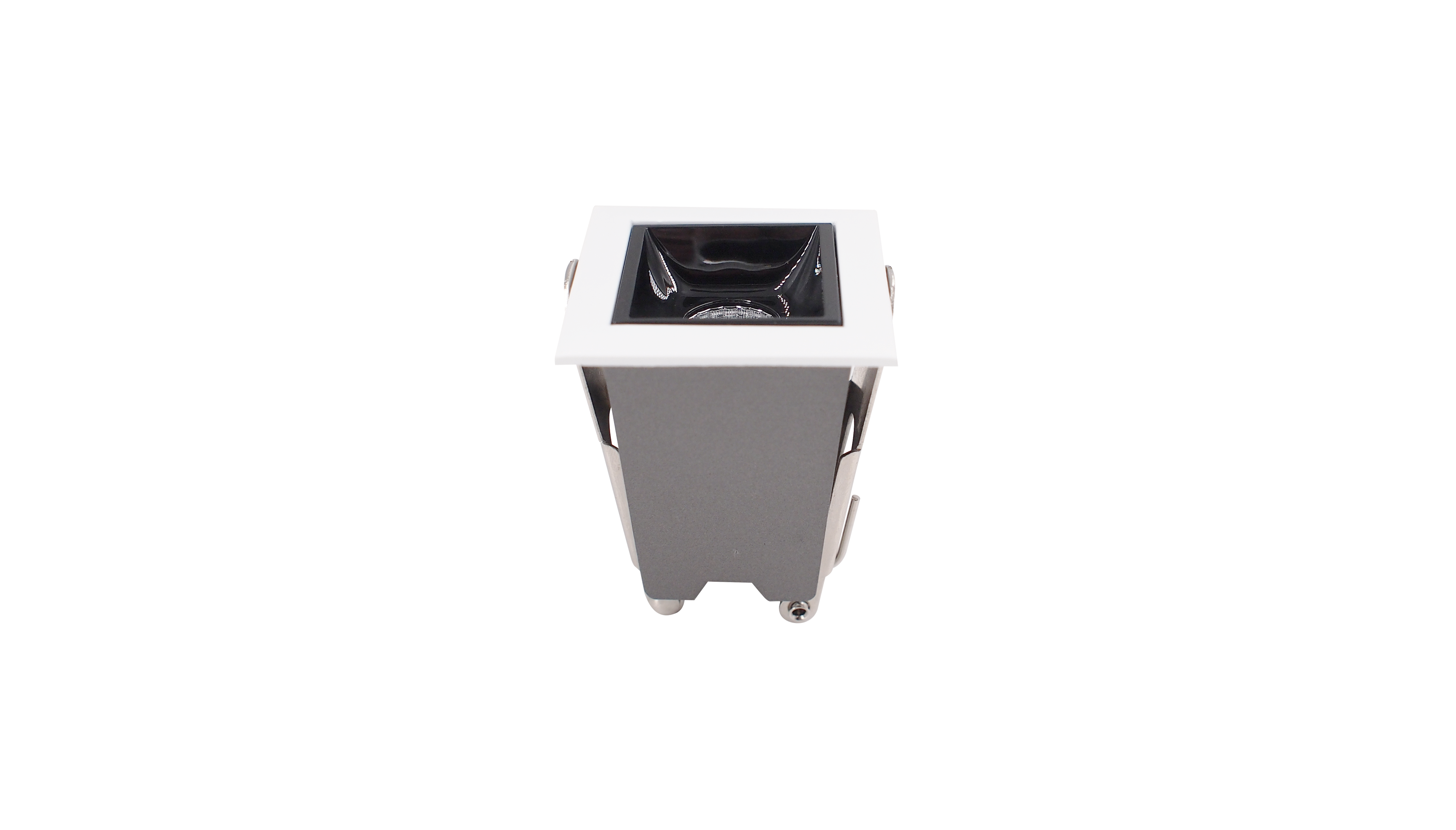

CS-Q9316-01 | 3W | 45*45*54 | 37*37 | Bridgelux | 2700K / 3000K 3500K / 4000K |
15° / 30° / 45° | Fixed Head Reflector Cup |
Gun Black |
 |
CS-Q9326-02 | 5W | 75*45*54 | 66*37 | |||||
 |
CS-Q9336-05 | 12W | 148*45*55 | 138*37 | |||||
|
CS-Q9346-10 | 20W | 282*45*55 | 272*37 | |||||
 |

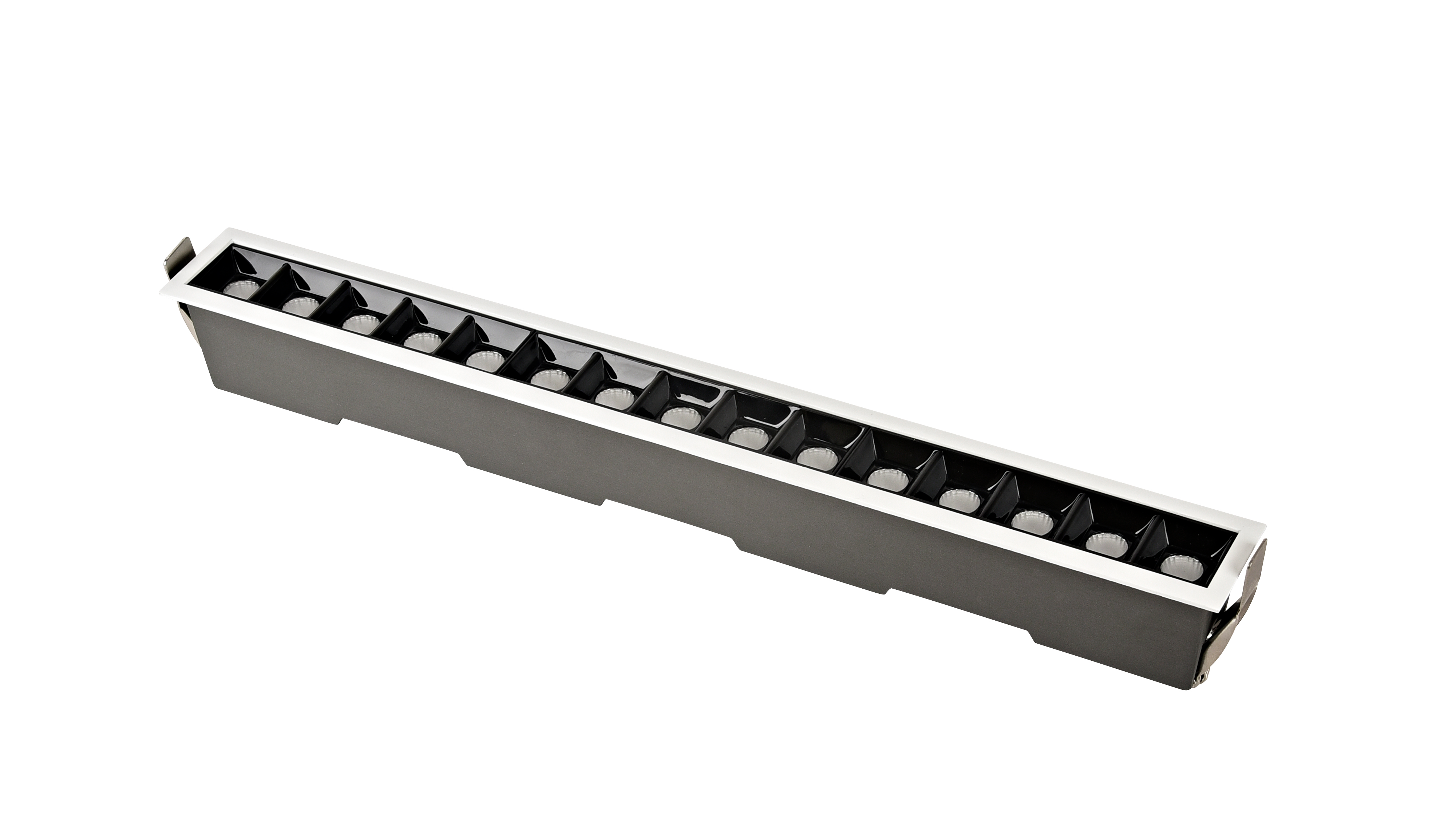

CS-Q9356-15 | 30W | 412*45*55 | 403*37 | |||||
 |

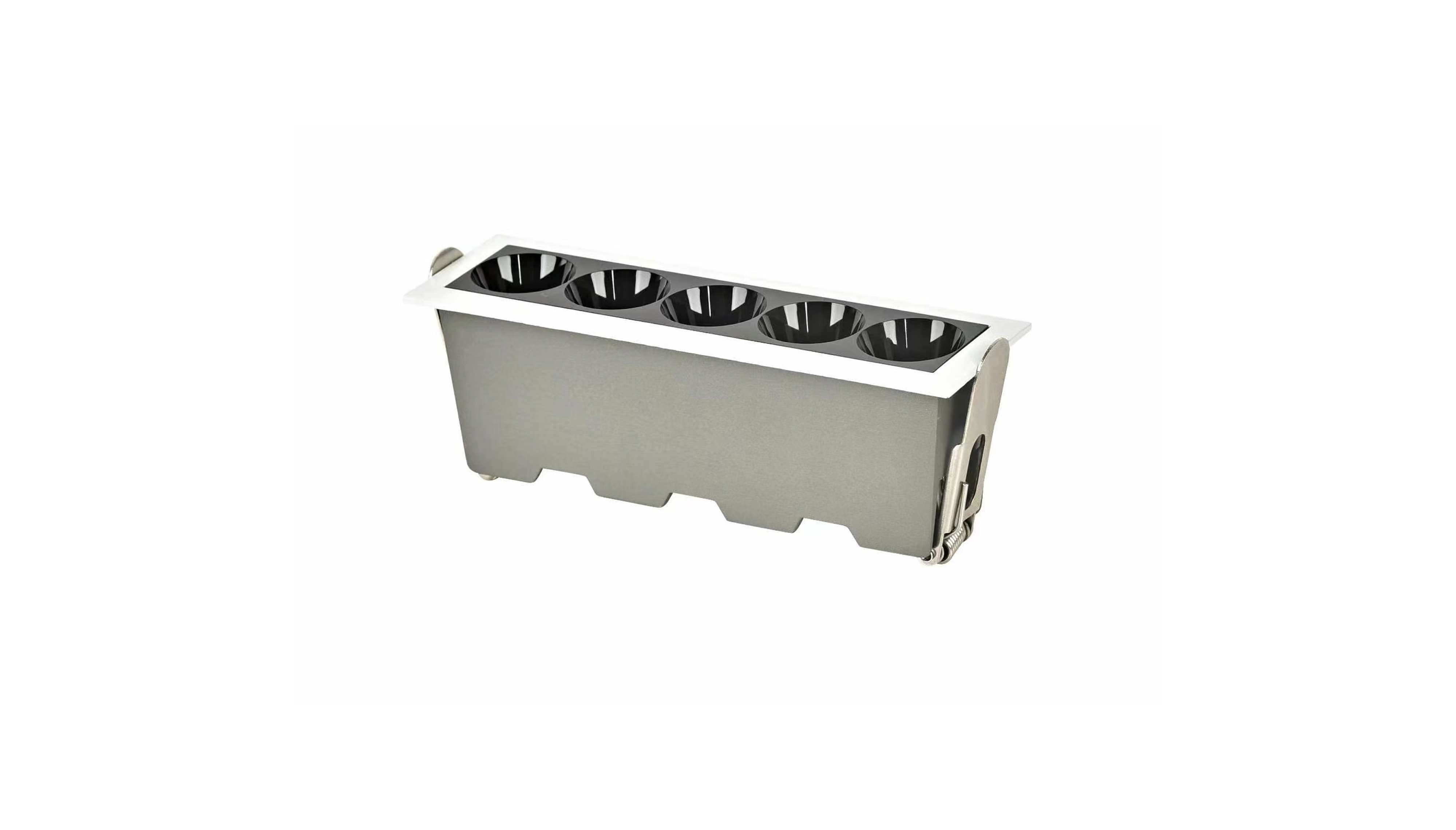

CS-Q9336-05B | 12W | 148*45*55 | 138*37 | Bridgelux | 2700K / 3000K 3500K / 4000K |
24° / 36° | Fixed Head Lens | Gun Black |
 |

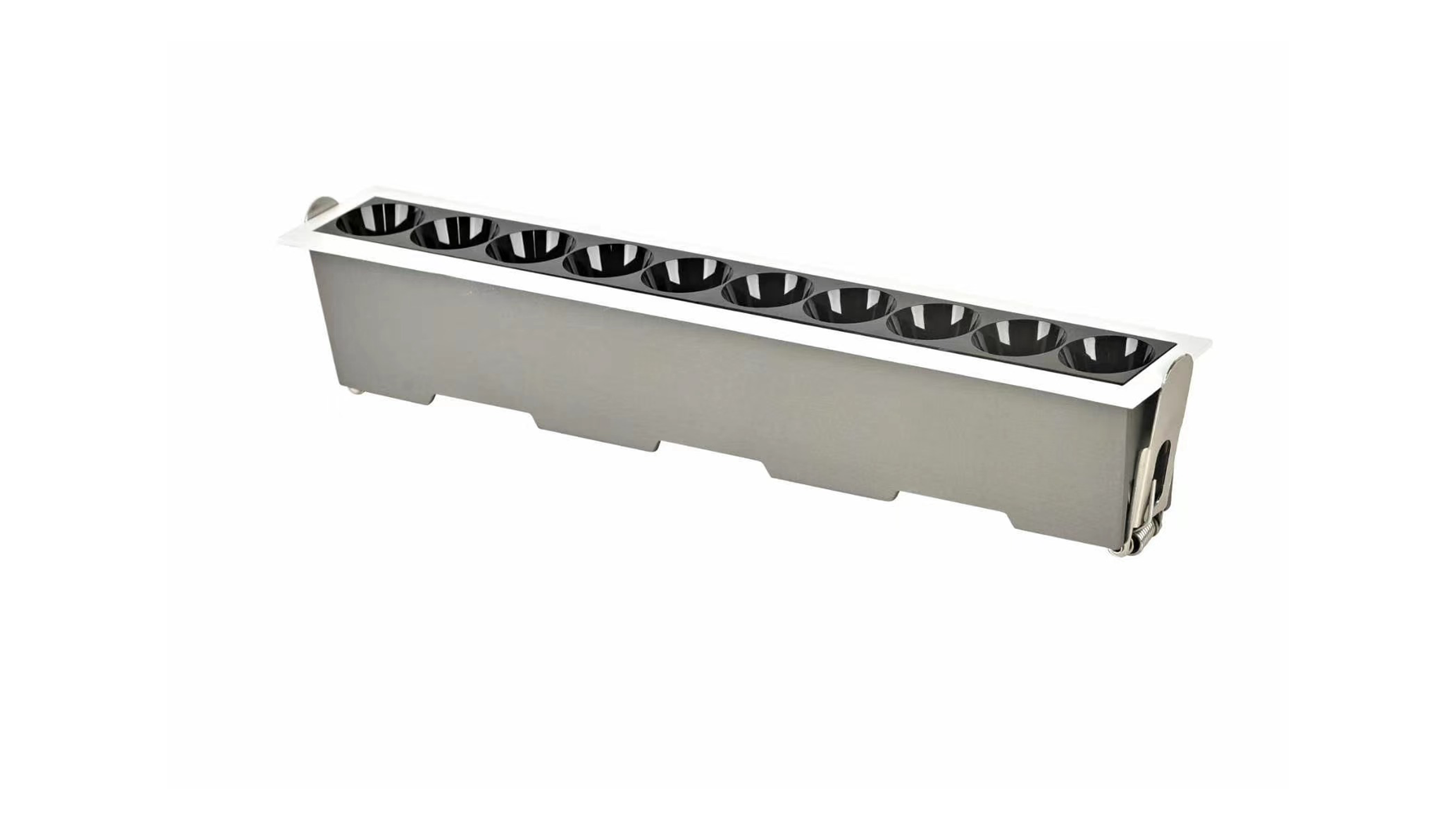

CS-Q9346-10B | 20W | 282*45*55 | 272*37 | |||||
 |

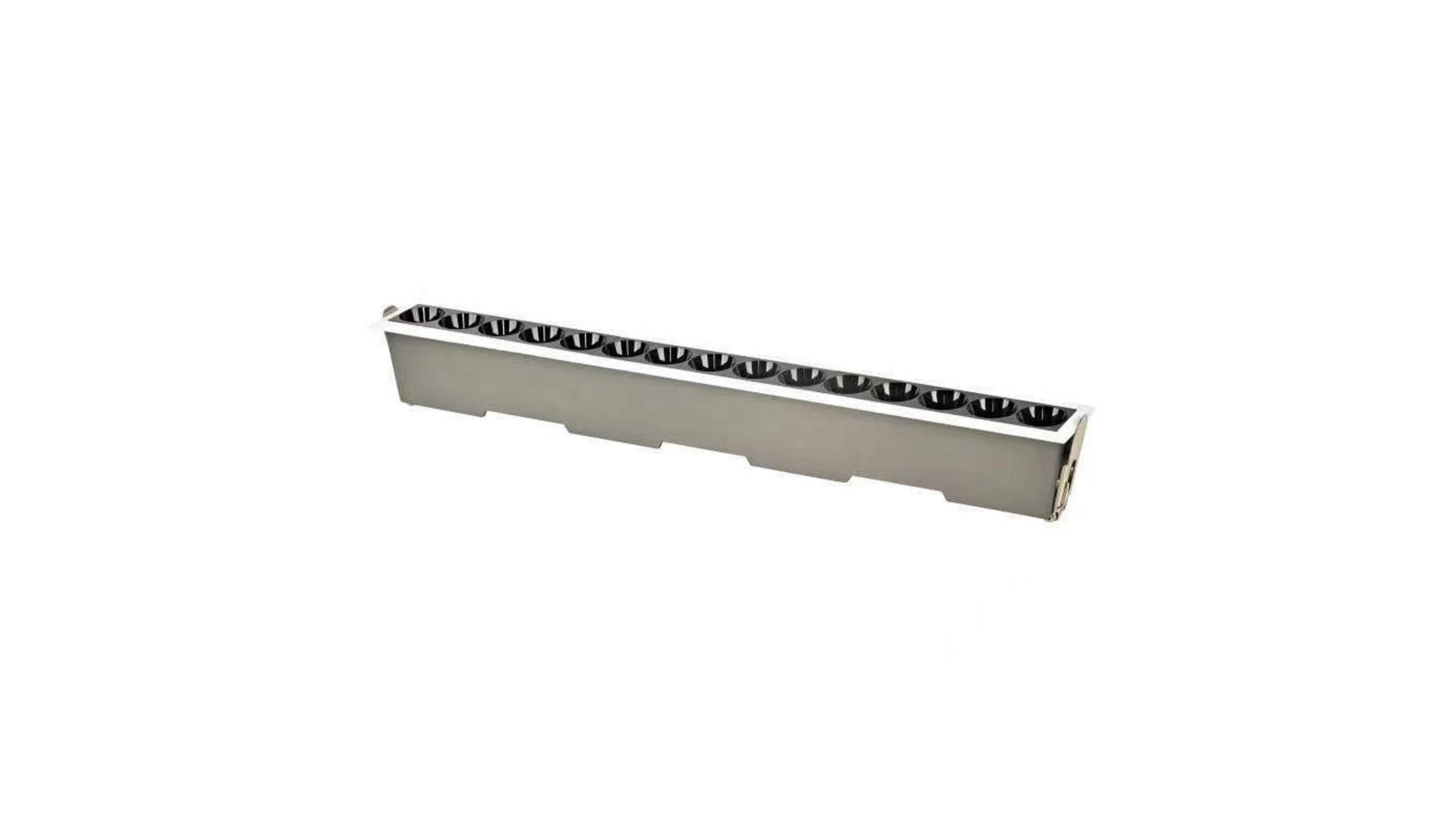

CS-Q9356-15B | 30W | 412*45*55 | 403*37 | |||||
 |

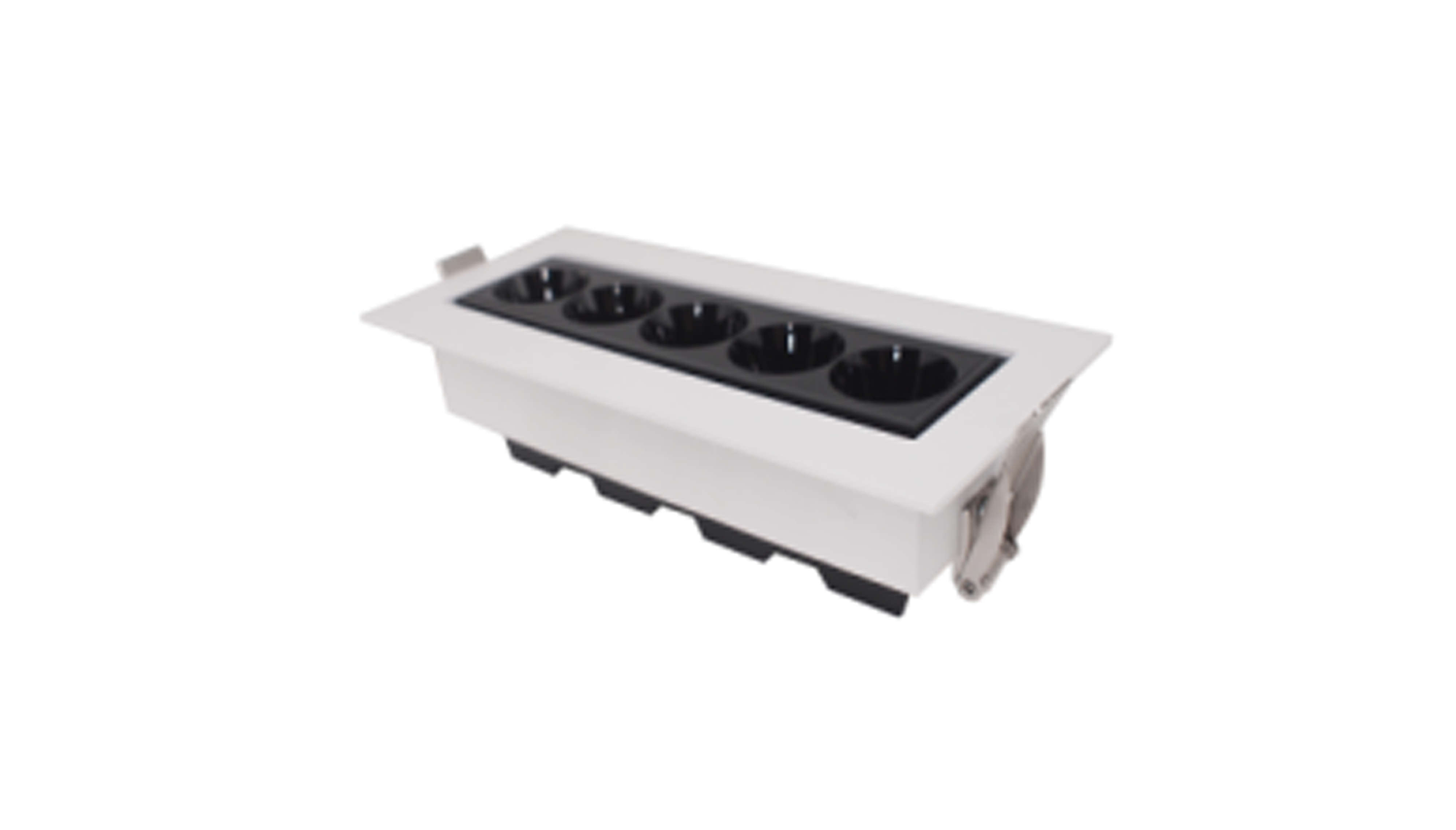

CS-Q9376-05B | 12W | 158*59*50 | 152*55 | Bridgelux | 2700K / 3000K 3500K / 4000K |
24° / 36° | Adjustable Head Lens | Gun Black |
 |

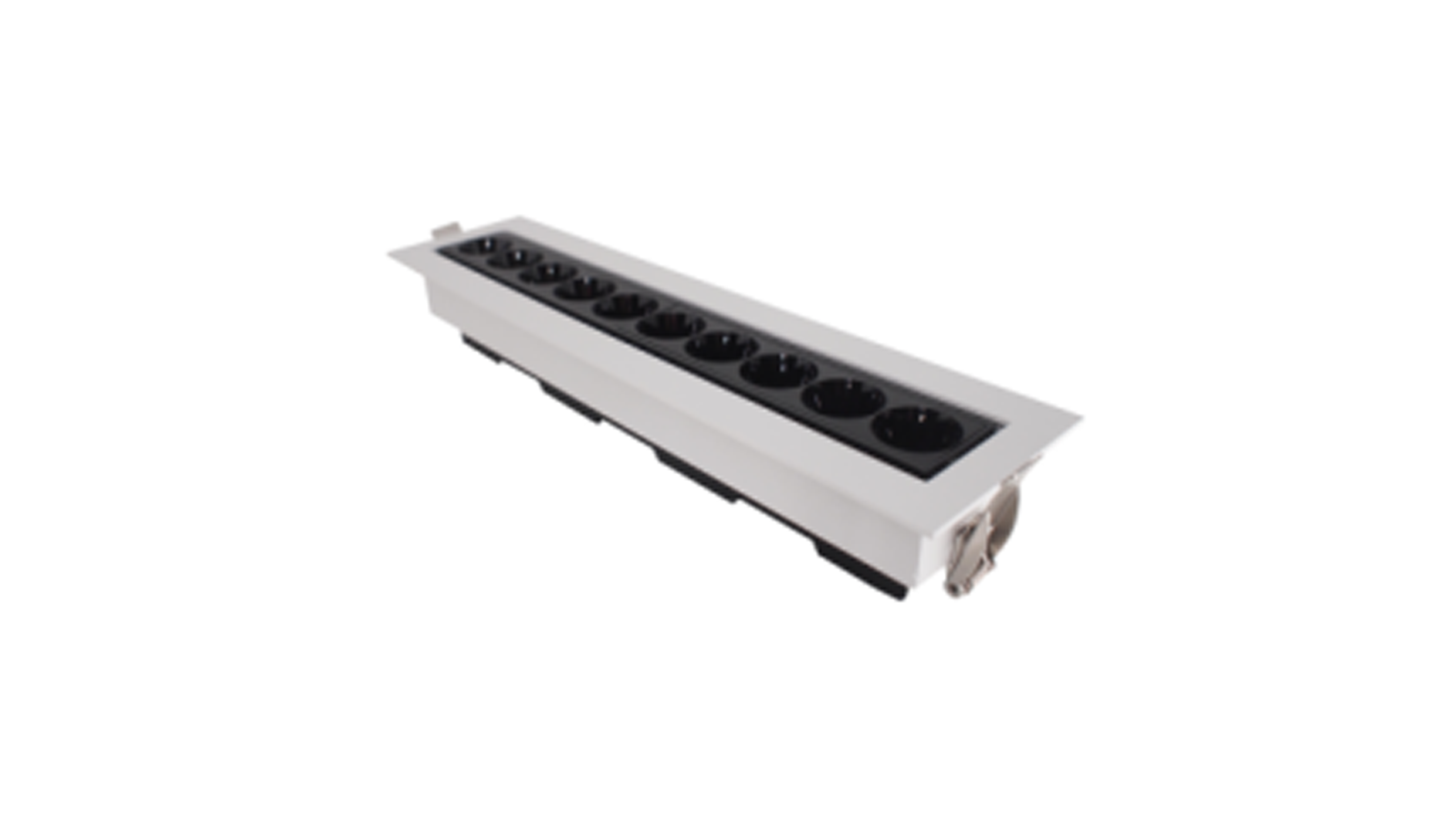

CS-Q9386-10B | 20W | 291*59*50 | 285*55 | |||||
 |

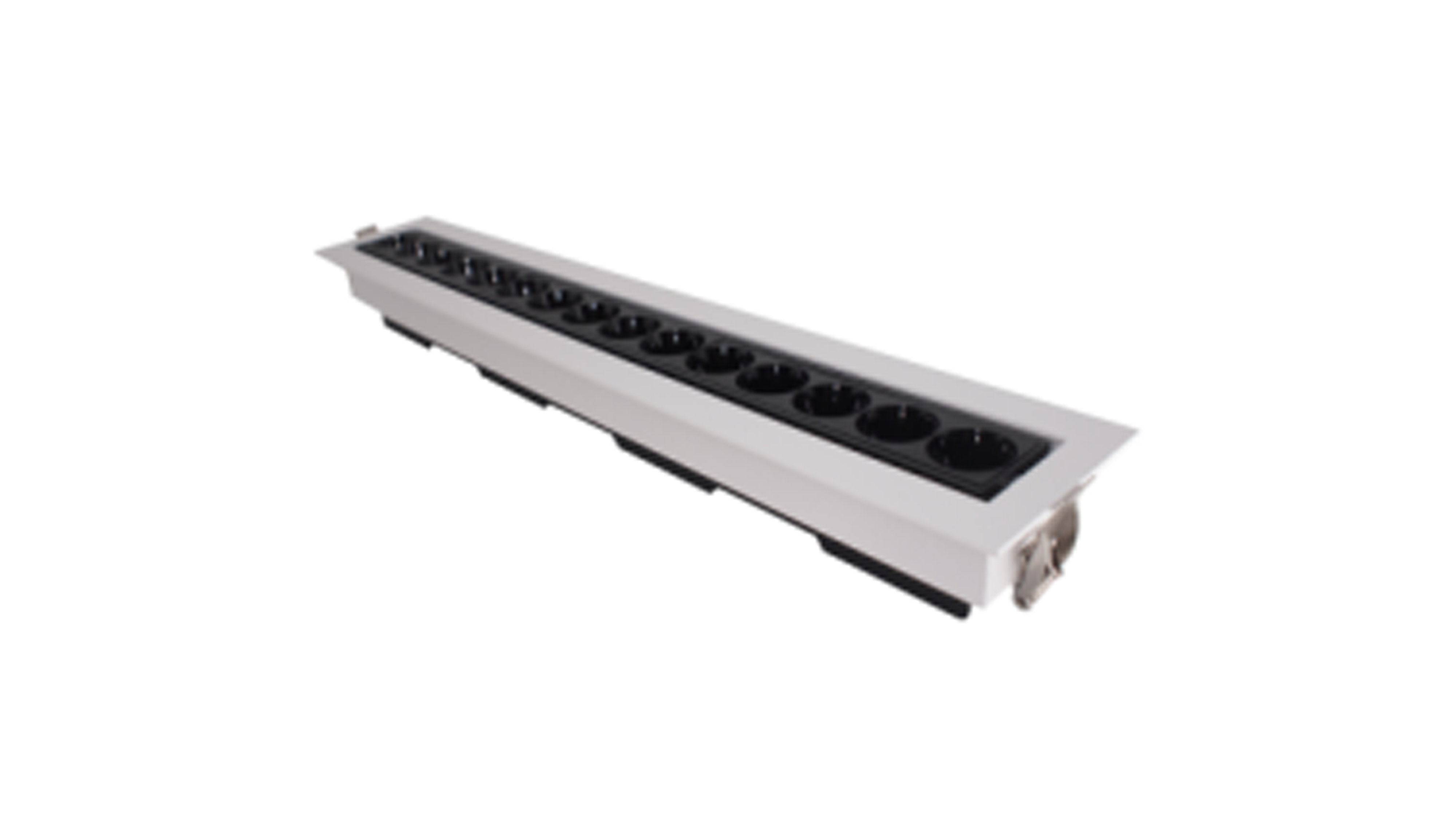

CS-Q9396-15B | 30W | 425*59*50 | 420*55 |
