Ultra Thin

Power: 5W - 12W
Beam Angle: 15° / 24° / 36° / 60°
Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K / 6000K
Cutout Dimension: Φ55mm / Φ60mm / Φ75mm / Φ95mm

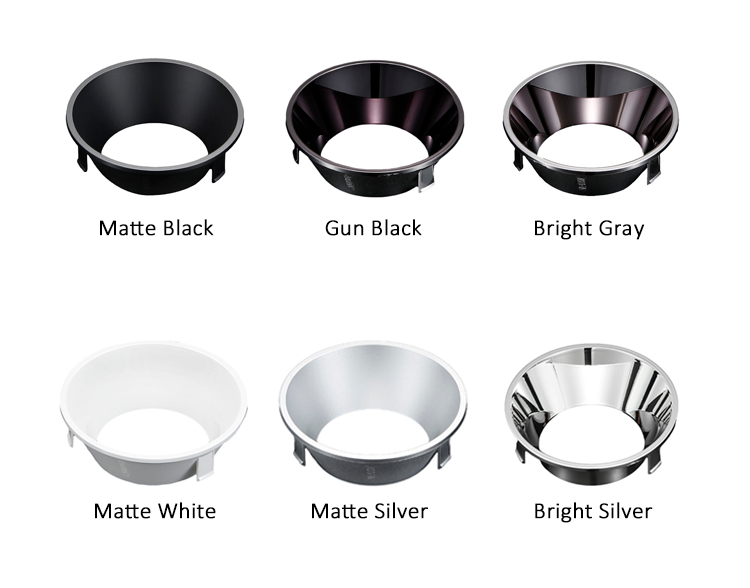

Inner Ring Color: Gun Black / Matte Black / Bright Gray / Bright Silver / Matte Silver / Matte White
Material: Cold-Forged Aluminum Alloy
Dimming: TRIAC / 0-10V / DALI / Zigbee
Light Source: Bridgelux / Luminus / Cree
CRI: 90 / 95

Model Code	Power	Overall Dimension (mm)	Cutout Dimension (mm)	Standard Light Source	Color Temperature	Beam Angle	Description	Inner Ring Color

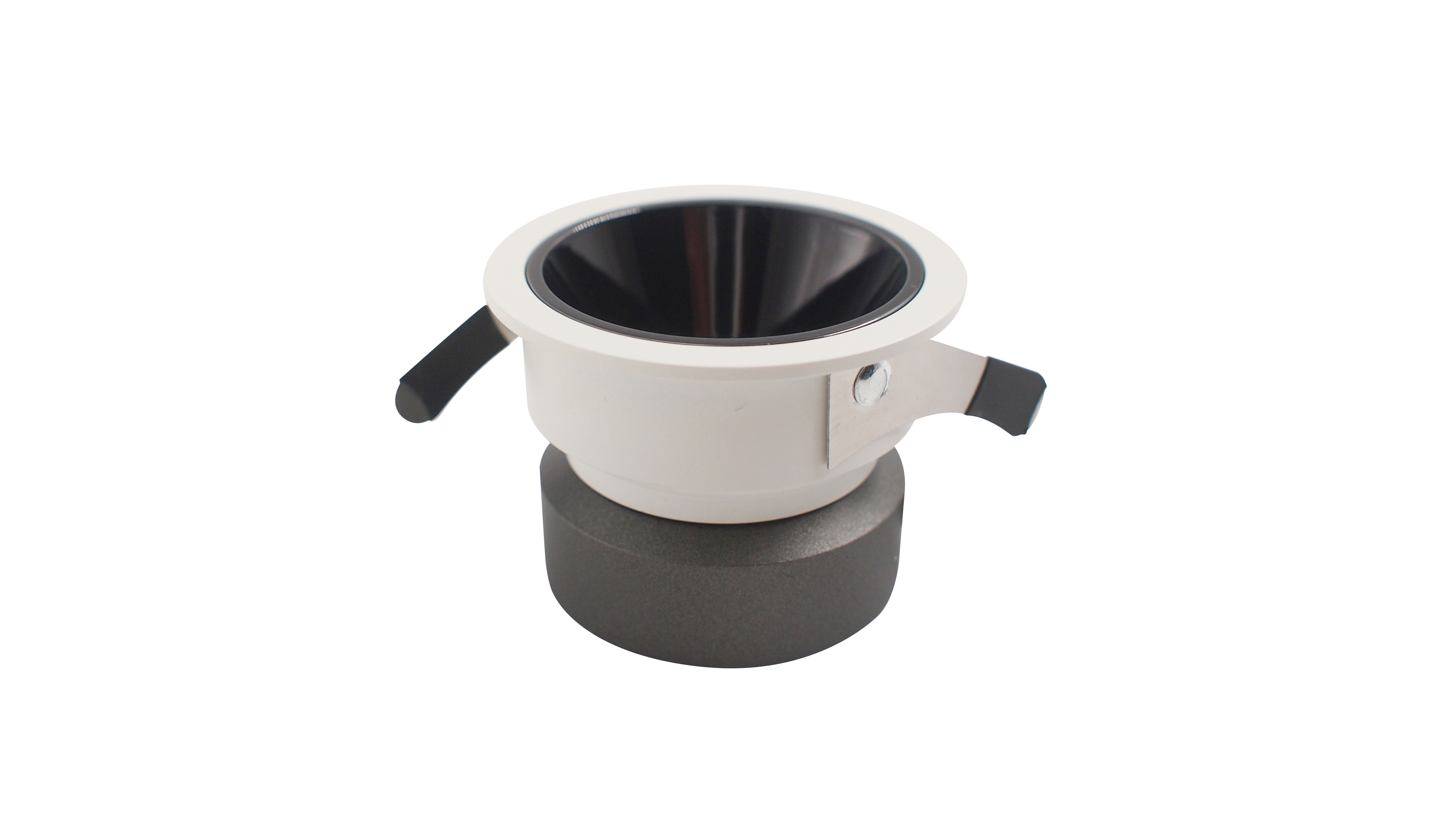

CS-Q4715-05C	5W	Φ60*45	Φ55	Bridgelux	2700K / 3000K 3500K / 4000K 5000K / 6000K	15° / 24° / 36°	Fixed Head Lens

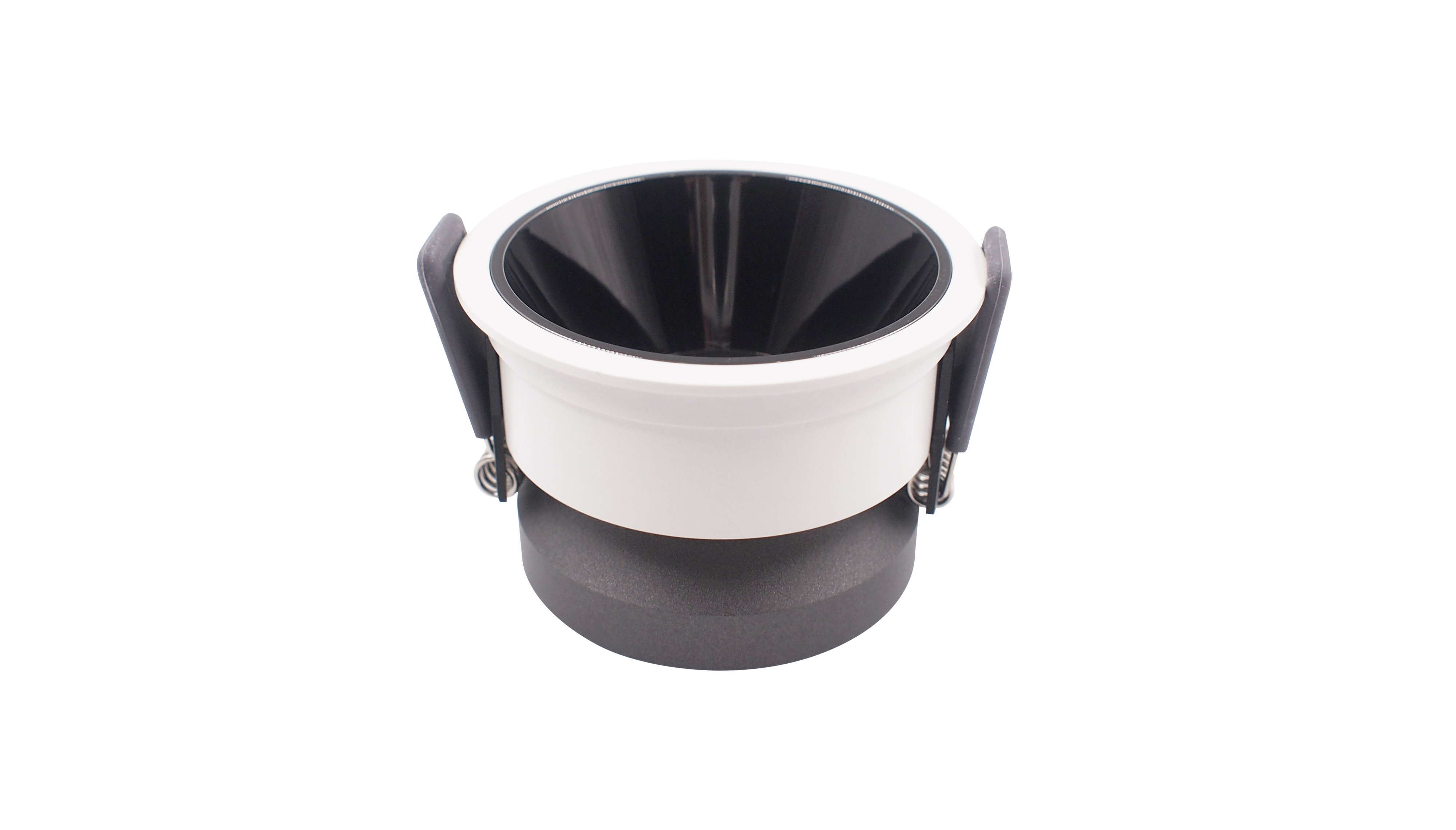

CS-Q4725-07C	7W	Φ80*54	Φ75
CS-Q4735-12C	12W	Φ101*66	Φ95

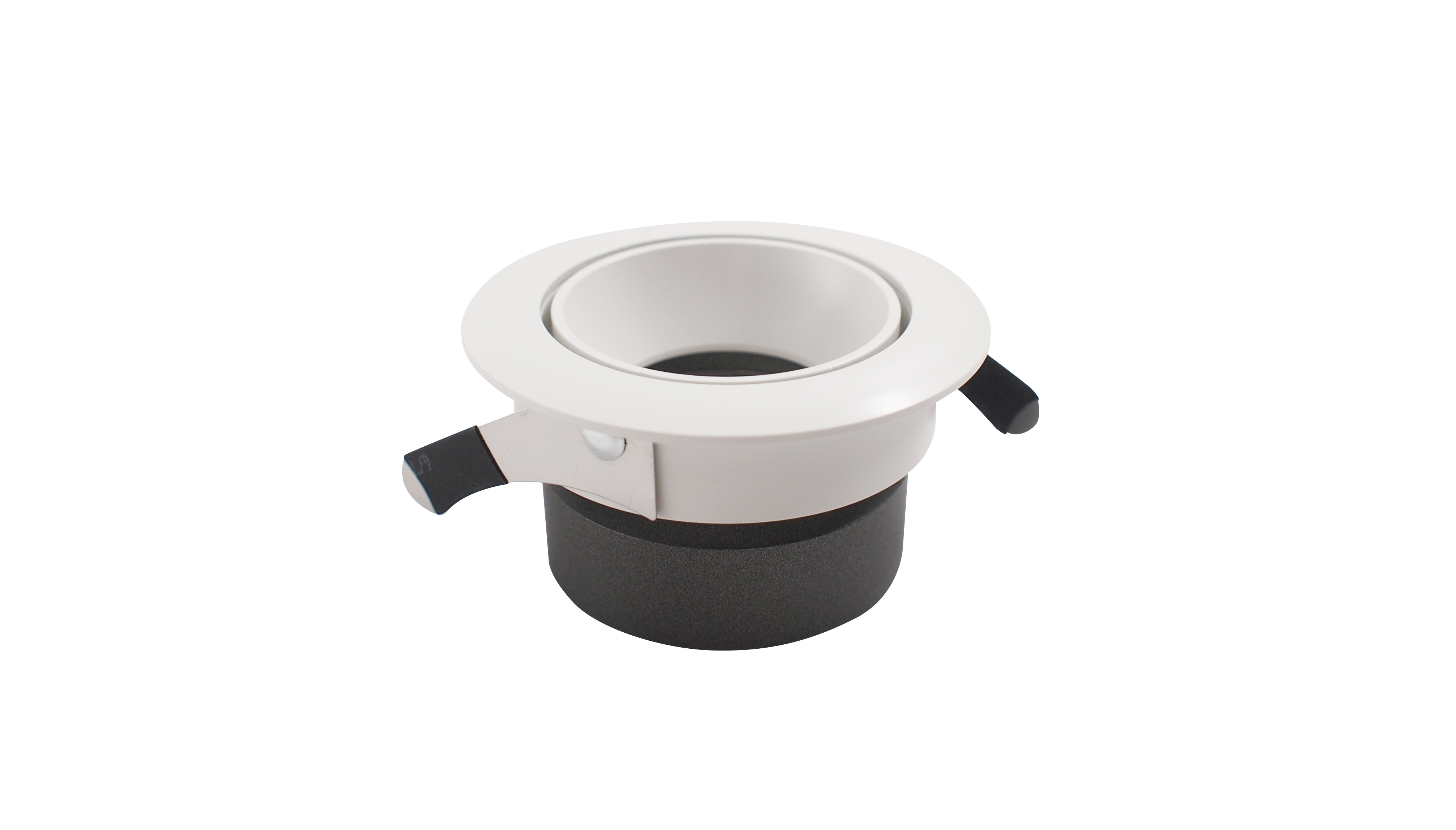

CS-Q8625-05C	5W	Φ68*38	Φ60	Bridgelux	2700K / 3000K 3500K / 4000K 5000K / 6000K	15° / 24° 36° / 60°	Adjustable Head Lens	Matte Black Matte White

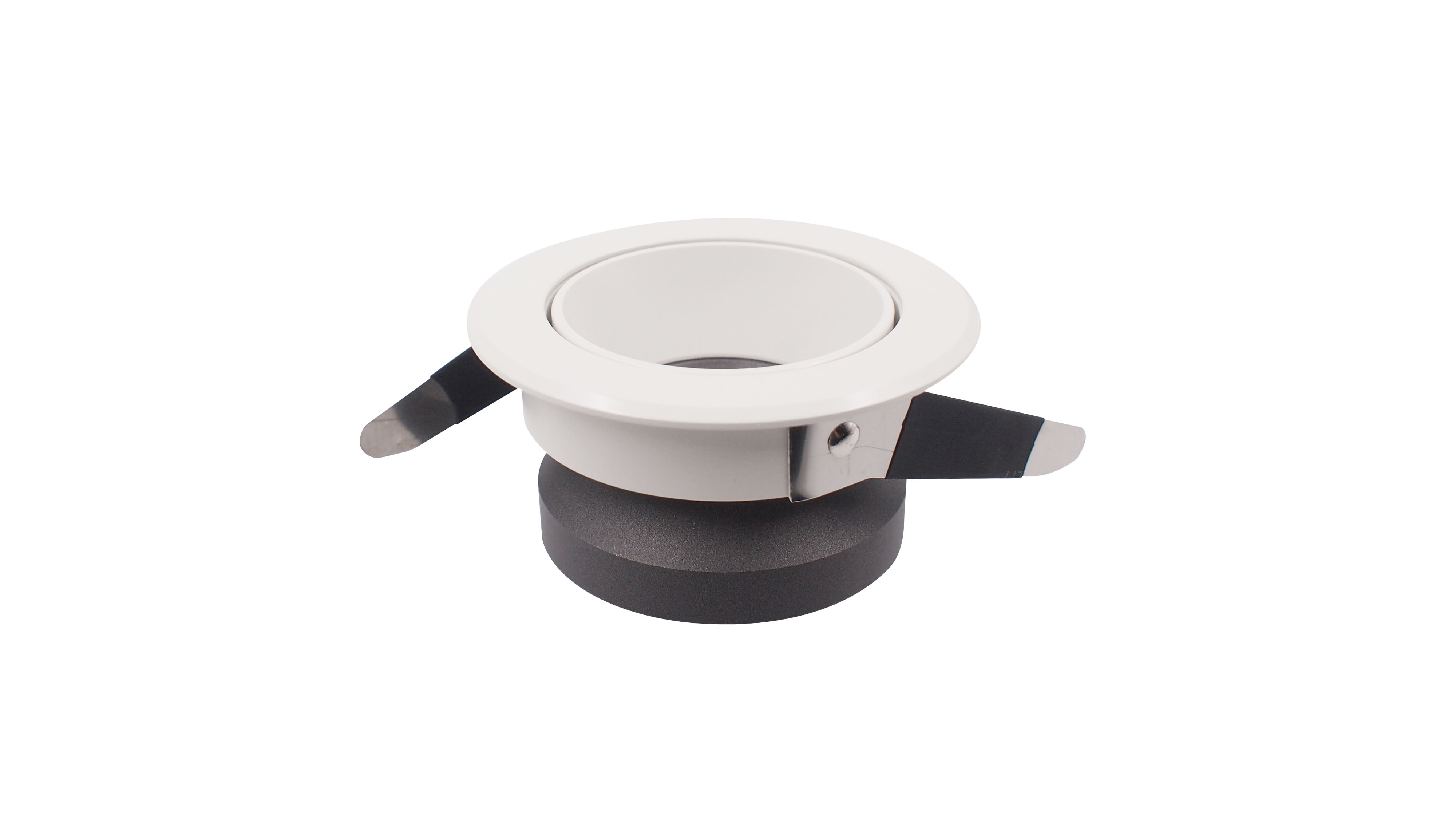

CS-Q8645-07C	7W	Φ88*44	Φ75

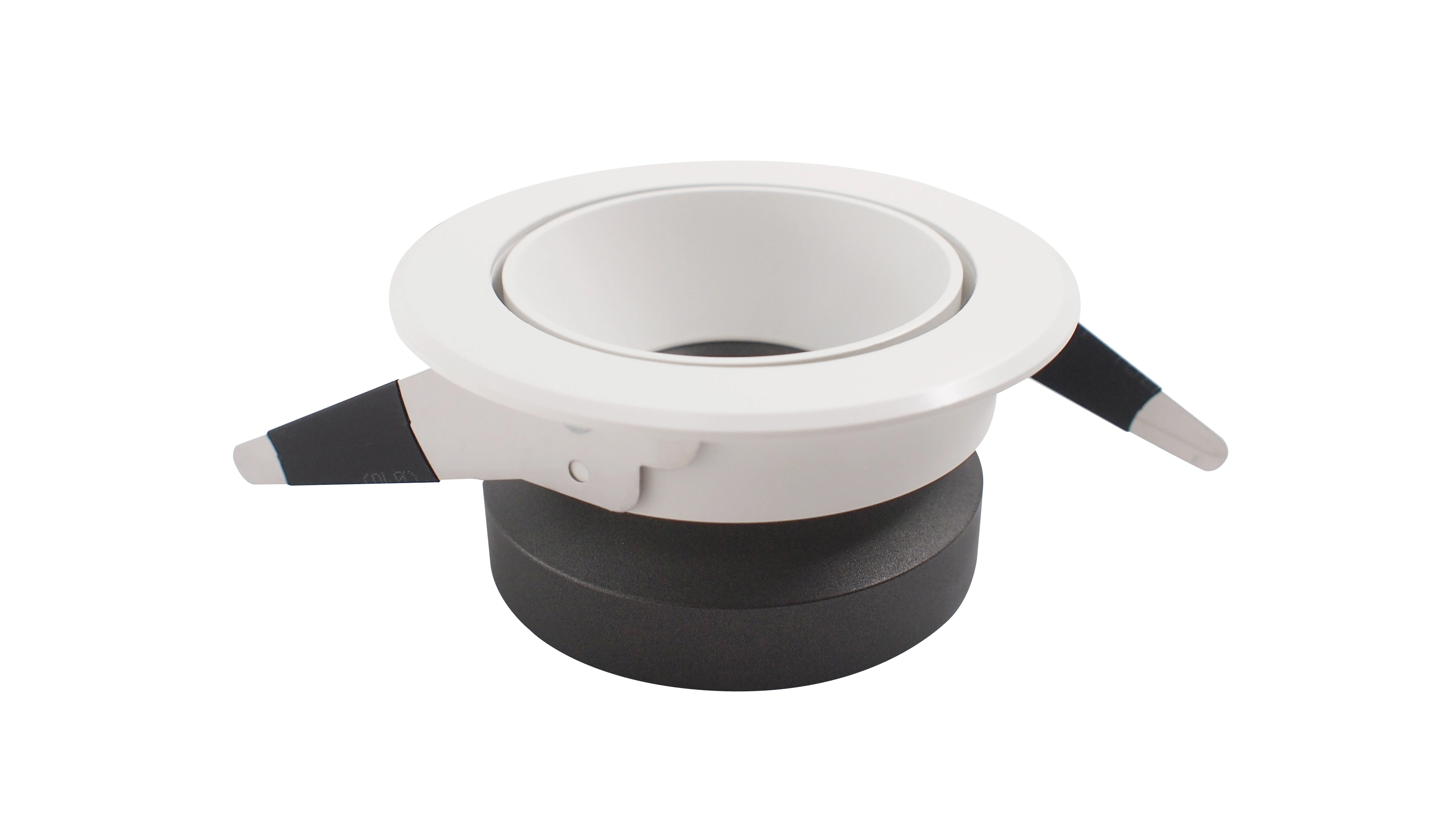

CS-Q8665-12C	12W	Φ108*52	Φ95
